Two Disc Laboratory Instrument Ymp-2 Metallographic Sample Grinding Polishing Machine

Product Description

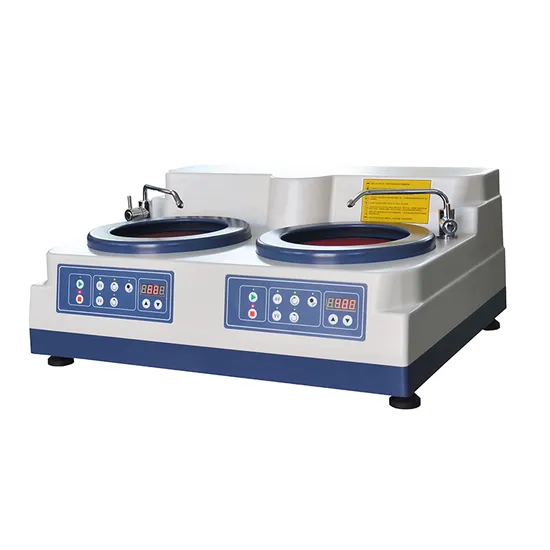

YMP-2 Metallographic Sample Grinding and Polishing Machine
Product Description YMP-2 metallographic grinding and polishing machine is a manual double-disk equipment, which is independently controlled. Our default model is stepless speed regulation, which can switch the direction of rotation arbitrarily, and adjust the speed of the turntable according to the grinding requirements. Using ABS material, not easy to corrode, long service life. When the product is in use, the noise is low, and the powerful motor torque brings strong power, with a high-school grinding and polishing experience. The leak-proof design of the main shaft ensures that the bearings are hardly damaged; equipped with a cooling water pipe, it can be wet-grinded and rinsed to clean the grinding disc.
Product Parameters Technical Parameters

Model	YMP-2
Disc Diameter	230mm
Abrasive Paper Diameter	230mm
Speed	Stepless speed 100~1400r/min, or Four speed 300, 600, 900, 1400r/min
Rotational Direction	Clockwise or Counterclockwise
Electromotor	DC brushless motor, 220V, 600W
Control and Display	Film key operation , Nixie tube display, With washing function
Power Supply	220V, 50Hz, 8A
Dimensions	757×660×330mm
Net Weight	57kg

Packing List

Name	Specification	Qty
Machine Body		1 set
Grinding and Polishing Disc	230mm	2 pcs
Ferrule		2 pcs
Abrasive Paper	230mm	6 pcs
Polishing Cloth	230mm	2 pcs
Water Inlet Pipe		1 pc
Water Outlet Pipe	Φ32mm	2 pcs
Water Inlet Filter Screen		1 pc
Usage Instruction Manual		1 copy

Packaging & Shipping The metallographic equipment we export is packed in wooden boxes. The packaging size of the YMP-2 model is 860*760*510mm, and the gross weight is 75kg. This product is relatively heavy, and it is more cost-effective to ship it by sea or air. We also accept freight forwarders to pick up the goods directly from the factory.
Our Advantages Metallographic series products rely on decades of stable research and development teams, professional consultants in the industry to develop and manufacture, and have many core metal patents for equipment.
It has ISO9001/ISO14001/ISO45001 certification and EU CE certification.
It also has cooperation with major domestic steel research institutes, colleges and universities, aviation automobiles, and leading enterprises in heavy machinery processing.
A complete machining workshop, more than 50 sets of various processing equipment such as CNC and numerical control machine tools, several sets of high-precision imported machining centers, and nearly 80 professional and technical workers.
FAQ 1. What is the MOQ of the product?
--The MOQ is one piece.
2. What certificates can your products provide? --ISO9001, ISO14001, ISO45001, CE, etc.
3. How long is your product warranty? --The warranty period is one year.

---
