PLC Programmable Logic Controller Mini Modular Scalable PLC Programmable Logic Controller

Product Details

Product Description

Product Description
Product introduction

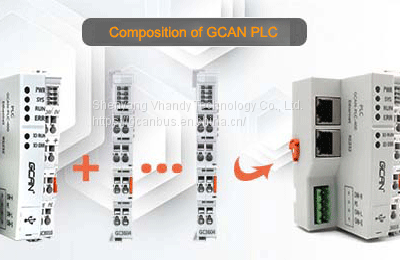

GCAN-PLC module is composed of a programmable control module (GCAN-PLC-400/510/511) and several I/O modules (GC-1008/2008/...). The control module uses high-speed CPU and has powerful computing and processing capacity. The control module also has a variety of fieldbus communication interfaces that users can use to connect to the corresponding network and communicate with other devices.
Total 3 control modules

Model	Characteristic	Communication bus
GCAN-PLC-400	CPU frenquency 168M	1*CAN+1*Ethernet+ 1*RS232(or RS485)
	Program storage:16M byte
	Data storage:512K byte
GCAN-PLC-510	CPU frenquency 400M	1*CAN+1*Ethernet+ 1*RS232(or RS485)
	Program storage:32M byte
	Data storage:16M byte
GCNA-PLC-511	CPU frenquency 400M	1*CAN+1*Ethernet+ 1*RS232+1*RS485
	Program storage:32M byte
	Data storage:16M byte

Total 2 communication module

Performance	CANopen adapter (GCAN-IO-8000)	Modbus adapter (GCAN-IO-8100)
Node number	1~127	1~247
Baud rate	10Kbps~1000Kbps	600bps~115200bps
Power input	24V DC (18~36V)
Insert I/O module number	32 pieces (at most 32*8 IO point)
Dimension	100mm*69mm*48mm
Working temperature, humdidness	-40℃~+85℃, 0~90%RH, without condensation
IP grade	IP20

Input and output modules
packaging
After-sale service
Our main products are all independent research and development.We provide one year free after-sales warranty,lifetime free software and technical support if you have any question,our after-sales engineer will answer for you,please feel free to purchase.

---
