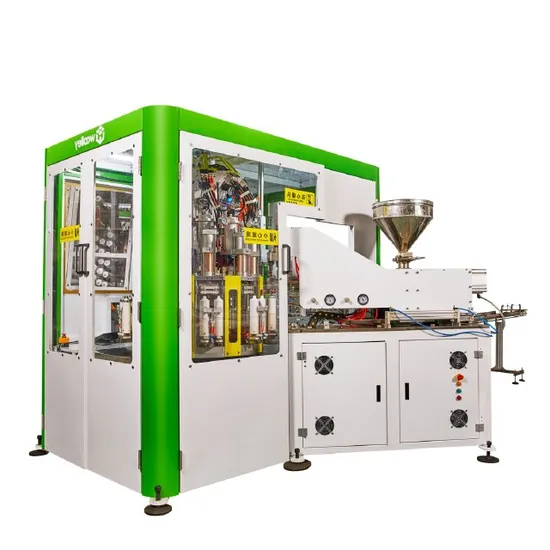

High Speed Cosmetic Tube Heading Machine Shoulder Machine
US$200,000.00
1 Piece
US$190,000.00
2+ Pieces
Basic Info.
Model NO.
JX-120
Structure
Vertical
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Speed
95-120
Transport Package
Wooden Case
Specification
JX-120
Trademark
WOOLLEY
Origin
China
Production Capacity
100PCS/Min
Packaging & Delivery
Package Size
380.00cm * 200.00cm * 250.00cm
Package Gross Weight
4000.000kg
Product Description
Automatic Tube Heading Machine and complete machine lines.JX-120A Patent Tube heading machine,is currently running in the fastest speed in China, for toothpaste and cosmetics tubes. Its high efficiency performance indicators catch up with the international first-class level.The heading machines for the cosmetic segment provide unbeaten flexibility for today's and tomorrow's competitive tube production and challenging the market requirements. Our machines run until 120 tubes guaranteed up to a tube diameter of 60 mm.Discover our heading machines for the cosmetic, food and beverage, toothpaste, the daily cleaning segments. Product technical parameters Detailed Photos
Model: JX-HS120 Production speed: 85-120 tubes Spec of tube orifice pin hole: 0.8-18mm Change time for the head molds: 2 to 3 hours Change time for the orifice pin: 30 minutes Change time for the color of PE material: within 1 hour Extrusion Spraying mode: servo motor control Extrusion Spraying accuracy: ± 5% Spraying Positioning accuracy: within 1.5 mm Stability of inlet and outlet tubes: headless tubes can be taken out Tube inlet mode: vertical upward Remarks 1: It is easy to be compatible with some deformed or eccentric tubes Compression molding mode and pressure: servo motor compression molding force reaches 2-3T Remark 2: The greater the compression molding force, the better the welding quality and appearance of the head to the body Diameter range of production tube: 16-60mm Length range of production tube: 55-220mm Shoulder smoothness and effect: no pitting and slight color masterbatch flow marks Remark 3: We adopt the method of the vertical mandrel, and the plastic PE is onto the mandrel by Extrusion Spraying way
