XCMG Manufacture Slm3500 3.5m3 Self Loading Mobile Concrete Mixer

Product Description

Product Description

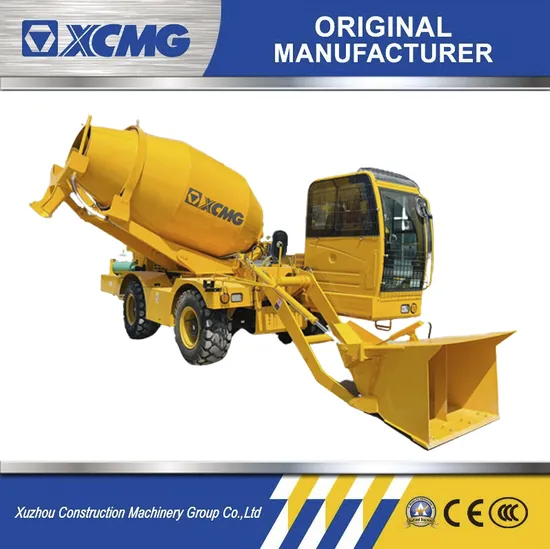

XCMG Manufacture SLM3500 3.5m3 Self Loading Mobile Concrete Mixer
Multi-function integration
Self loading concrete mixer is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency;
Weighing system
The aggregate is weighed in the loading process to ensure that the required concrete can be produced and the production efficiency can be improved with the weighing accuracy within 3%. Product Parameters

Overall Parameter
Model	SLM3500
Dimension (L×W×H)	7117×2500×3331 mm
Weight (approx.)	8600 kg
Performance
Mixing Drum Capacity	Drum capacity 5.3m³,Concrete output: 3.5 m³ per batch
Mixing Speed	0-20rpm in full, infinitely variable speed change
Loading Speed	3 shovels/min, 650L/Shovel
Water Pumping Capacity	1.5 min/batch, 40 t/hour
Traveling Speed	Low Speed: 0-10km/hour / High Speed: 0-20km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4 wheel drive and 4 wheel steering
Electrical System	24V
Water Tank Capacity	2x350L
Diesel Tank Capacity	150L
Hydraulic Oil Tank Capacity	125L
Engine
Model	YC4A125Z
Manufacturer	YUCHAI
Rated Power	92 KW
Displacement	4.84 L

Product Picture

Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
