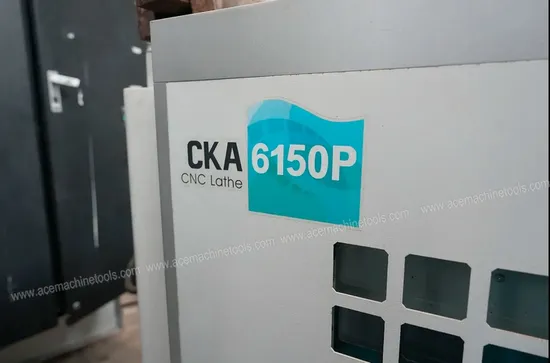

Gtdmtg Cka6150p Flat Bed CNC Lathe Machine CNC Lathe Machine Ck6150

US$1.00 1 Piece (MOQ)

Basic Info.

Model NO.
CKA6150P
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
CNC Lathe
Ace Machine Tools
Transport Package
Sea Worthy Packing
Specification
CE
Trademark
Acemachinetools
Origin
China
HS Code
8459619000
Production Capacity
10000/Set

Product Description

Specification
Unit
CKE6150
CKE6150i
Max. swing diameter over bed
mm
Φ500
Max. swing diameter over cross slide
mm
Φ280
Max. workpiece length
mm
750/1000/1500/2000
750/1000
Max. cutting length
mm
680/930/1430/1930
680/930
Max. turning length
Vertical
4-position
mm
Φ500
Opt:Horizonta
6-position
mm
Φ400
Opt:Horizonta
8-position
mm
Φ370
Spindle center height
mm
250
Bed guideway width
mm
400
Spindle motor power
kw
7.5/11
(Servo motor)
11/15
(Servo motor)
Spindle type
r/min
Gear box
Belt driven
Spindle bore
mm
Φ82
Chuck size
mm
Φ250
Φ254
Taper of spindle bore

Front end
Φ90 1:20
Front end
Φ100 1:20
Type of spindle nose

D8
A2-8
Spindle speed ranges
r/min
*7~2200 3 range manual(auto)
*30~3000
Single spindle
Tailstock quill diameter
mm
Φ75
Tailstock quill travel
mm
150
Tailstock quill taper

MT 5
Max. travel of X-axis
mm
280
Max. travel of Z-axis
mm
685/935/1435/1935
685/935
Rapid traver of X/Z axis
m/min
4/8 (750,1000,1500)
4/6 (2000)
4/8
Tool shank size (Vertical 4-positon)
mm
25X25
25X25
X/Z axis positioning accuracy
mm
0.018/0.021(750)
0.024(1000)0.026(1500,2000)
0.018/0.021(750)0.024(1000)
X/Z axis repeatability accuracy
mm
0.006/0.008(750)0.011(1000)
0.014(1500,2000)
0.006/0.008(750)
0.011(1000)
Machine dimensions(L×W×H)
mm
2580×1750×1620(750)
2830×1750×1620(1000)
3330×1750×1620(1500)
3830×1750×1620(2000)
2580×1750×1620(750)
2830×1750×1620(1000)
Machine weight
kg
2550(750)2600(1000)
2700(1500)2800(2000)
2550(750)
2600(1000)
