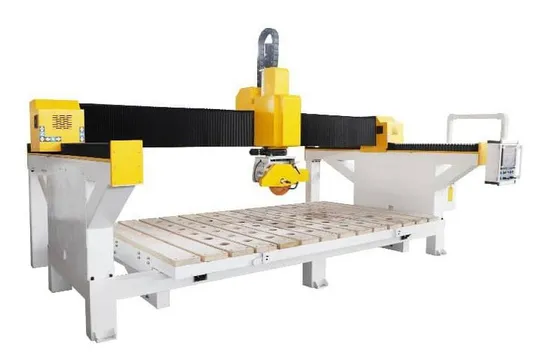

5 Axis Bridge Saw Type Stone Cutting Machine

Product Description

Item iGS-B
The bridge stone cutting machine can realize cutting, chamfering, edging, profiling, milling, drilling, slotting, rounding, circular arc and other special-shaped processing through five-axis linkage.
Simple to operate and has strong practicability.
A variety of configurations are available.
By using advanced micro computer control system to achieve multi programming methods, including manual programming or PC programming , this machine can achieve fully automatic processing operation and some powerful functions, like easy-operation auto cutting, edge polishing, slotting, kitchen countertop processing, special shape processing and other operations.

Marble, Granite, standstone,glass,headstone, tablet,such as ceramic engraving and cutting machine. Have mainly three functions cutting, polishing the edge, cut hole in sink.

The high-efficiency stone bridge cutting machine supplied by adopts high-strength mechanical structure, which is very suitable for manufacturers who process special-shaped stone in batches. Imported linear guide rails are used to ensure accuracy and provide a set of competitive configurations. Popular applications include

Decoration industry special-shaped lines and relief carvings of stone background walls;

Stone countertops with digging basin holes and European borders: suitable for cabinet artificial stone, quartz stone, granite, marble countertops and sinks, kitchen countertops, bathroom countertops, special-shaped bar counters, stone coffee table countertops, basin hole cutting, back-arc water forming And polishing, etc.;

45-degree side cutting, 90-degree right angle splicing and special-shaped processing;

Drilling, grinding, trimming, carving, cutting, polishing and engraving of other special-shaped stones, ceramics, glass and ceramic stones.

Model	iGS-B
Working table size	3000*2000mm
Overall size	4500*2280*2100mm
X-axis working stroke	3000mm
Y-working stroke	2000mm
Z-working stroke	260mm
A-working stroke	360°free rotation
Pneumatic ball	easy to move marble
Reversal table	for easy loading
Control system	Control system
The machine head	automatically flips 0-45-90 degrees
X/Y axis cutting speed	X/Y axis cutting speed
Z axis cutting speed	Z axis cutting speed
A cutting speed	0-7r/min
Cutting thickness	100mm
Processing precision	350mm
Red light positioning	Included (Infrared cutting reference)
Programming method 1	Manual programming
Programming method 2	Image input
Control method	CNC
Power	4000W
Working voltage	380V/50HZ
R.P.M	2800r/min
Weight	2500kg

---
