Multifunctional Reactor with Wall Scraper and Hi-Speed Dissolver

Product Description

1. Chemical Processing Machine: Multifunctional Reactor
1.Heated by electrical heating tubes with Jacket
2.Cooling via water in internal spiral coil or jacket
3. One or two high speed disperser and one low speed stirrer
4. Application: high viscosity prouct
Chemical Processing Machine FS series Multifunctional Mixing Dispersing Tank is integrations of powerful mixer and high speed disperser, which is applicable for mixing, dispersing, dissolution and color mixing of medium/high viscosity and thixotropy materials. Mixing and dispersing can proceed simultaneously and reach ideal effect. It is ideal mixing and dispersing equipment which is easy to operate and widely applicable.
Operating principle:
Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc..
Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
Applicable Field: All the liquid-liquid, liquid-powder reaction industry.
Instruction:
1).Reactor kettle is the main chemical react production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
2).Break down or Re-combined the molecule through mixing, Heating, cooling, Vacuumize, etc. Suit for polymerization, hydrogenation, vulcanization, nitration,etc. The reactor is made up of body vessel, jacket vessel, gears, mixing devices, heating devices, cooling devices, seal composition,etc. The auxiliary equipment:Head tank, distillation column, condenser, water separator, collecting cans, dilution tank, filters ect.
2. Specification of Multifunctional Reactor

Model#		FS-2	FS-3	FS-5	FS-6	FS-8	FS-10	FS-12
Volume of Tank(m 3 )		2	3	5	6	8	10	12
Power of Mixing Motor(kw)		5.5	5.5	7.5	7.5	11	15	18.5
Speed of Mixing Shaft(rpm)		50	50	50	50	41	41	41
Dia. of Mixer Blade(mm)		1300	1500	1700	1700	1900	2100	2300
Power of Dispersing Motor(kw)		13/16	13/16	22/28	22/28	22/28	26/34	30/42
Speed of Dispersing Shaft(rpm)		960/1450	960/1450	960/1450	960/1450	970/1470	970/1470	750/1480
Qnty. of Dispersing Shaft		2	2	2	2	2	2	2
Dimension(mm)	D	1400	1600	1800	1800	2000	2200	2400
	H	1650	1765	2048	2400	2800	2950	3100
	H1	1930	2000	2200	2200	2500	2570	2620

3. Mixing system for reactor
Mixing system is the core component of reactor, a cutom-made stirrer is your key to success. stirrer selection is related with the material's viscosity, liquid-solid ratio, proportion of liquid, solid's internal pipe coil etc.

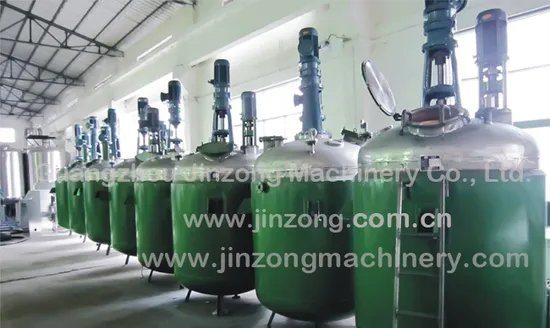

4. Reactor Series
The reaction kettle is widely used for reaction, evaporation, conectration, synthesization, polymerization, mineratization, etc. in chemical industry, medecine, dye, pesticide, organic synthesis, petroleum,food additives, industry of national defense and scientific reserch. Our company is an enterprise specialized in designing and manufacturing reaction kettles, we can design and manufacture various types of reaction kettles for users.Model selection reference of reaction kettle

Composition	Instructions
Specification (L)	50-50000
Design Pressure (Mpa)	Atmospheric Pressure or under pressure
Material	Carbon steel, stainless steel, enamel, graphite
Heating Forms	Electrical heating with medium in jacket, external half coil steam heating, external half conduction oil heating, hot water infrared heating etc.
Cooling Forms	Refrigeration medium in the internal pipe jacket
Blending Power	Model selection is made according to material viscosity, liquid-solid ratio, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type, with or without baffle or internal coil.
Stirring blade Forms	Anchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
Seal	Mechanical seal or stuff packing seal
Inner Surface Treatment	Polished or no polished
Discharge Valve	Flanged ball valve, open downward discharge valve and others
Technological Pipe Hole	Manhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature, mouth, mouth filling N2,

*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
5. Ready for delivery

---
