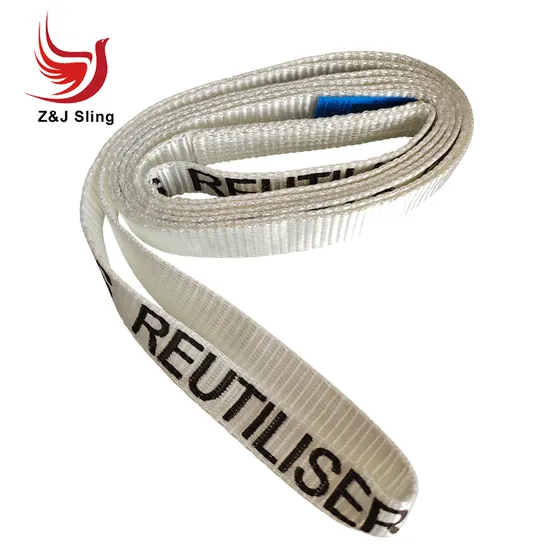

Z&J Sling Endless Type Webbing Sling Cargo Lifting Sling

Product Description

Stock No.	Color	WLL	SWL WLL(t) M CC							Double multi-set SWL(t)
			vertical	choke	<7º	a>7º a<45º	a>45º a<60º	a<45º	a>45º a<60º	a<45º	a<45º	a<60º	a>45º a<60º
			M=1.0	M=0.8	M=2.0	M=1.4	M=1.0	M=0.7	M=0.5	M=1.4	M=1.12	M=1.0	M=0.8
FS010	Violet	1.0t	1.0	0.8	2.0	1.4	1.0	0.7	0.5	1.4	1.1	1.0	0.8
FS020	Green	2.0t	2.0	1.6	4.0	2.8	2.0	1.4	1.0	2.8	2.2	2.0	1.6
FS030	Yellow	3.0t	3.0	2.4	6.0	4.2	3.0	2.1	1.5	4.2	3.4	3.0	2.4
FS040	Grey	4.0t	4.0	3.2	8.0	5.6	4.0	2.8	2.0	5.6	4.5	4.0	3.2
FS050	Red	5.0t	5.0	4.0	10.0	7.0	5.0	3.5	2.5	7.0	5.6	5.0	4.0
FS060	Brown	6.0t	6.0	4.8	12.0	8.4	6.0	4.2	3.0	8.4	6.7	6.0	4.8
FS080	Blue	8.0t	8.0	6.4	16.0	11.2	8.0	5.6	4.0	11.2	9.0	8.0	6.4
FS100	Orange	10.0t	10.0	8.0	20.0	14.0	10.0	7.0	5.0	14.0	11.2	10.0	8.0
FS150	Orange	15.0t	15.0	12.0	30.0	21.0	15.0	10.5	7.5	21.0	16.8	15.0	12.0
FS200	Orange	20.0t	20.0	16.0	40.0	28.0	20.0	14.0	10.0	28.0	22.4	20.0	16.0
FS300	Orange	30.0t	30.0	24.0	60.0	42.0	30.0	21.0	15.0	42.0	33.6	30.0	24.0
FS500	Orange	50.0t	50.0	40.0	100.0	70.0	50.0	35.0	25.0	70.0	56.0	50.0	40.0
FS800	Orange	80.0t	80.0	64.0	160.0	112.0	80.0	56.0	40.0	112.0	89.6	80.0	64.0
FST10	Orange	100.0t	100.0	80.0	200.0	140.0	100.0	70.0	50.0	140.0	112.0	100.0	80.0
Comply with ISO4878 EN1492-1:2000 JB/T8521.1

Polyester Endless Webbing Sling has below advantage:
1.Low cost, simple design
2.Easy to use
3.Stronger and more compact than rope or wire rope alternative solutions.
4.Can be attached or built in to a structure or load, but must only be used to perform a single complete lift.
5.Saves time and cost on-site slinging and reslinging loads.Available as standard in 30mm, 60mm and 90mm widths in endless format. Application Area:
Our products are widely used in the automotive, transportation, construction and aviation industries while making a lot of people's lives safer or easier. Our products have been well sold to most cities in China, and also exported to Europe, Asia, Mid East and America. We can also manufacture the special styles according to your requirements.
Notes:
1. Always protect webbing from hot surfaces, sharp edges and acids
2. Don't use if webbing is torn or frayed or if hardware is damaged
3. Observe working load limit (WLL) as started to determine quantity of strap assemblies
Certificate:
About Shipping
1.We will choose the most suitable express if your time is urgent or goods not so heavy
2.We will ship goods by sea of by air if goods are heavy and deliver time is enough
3.We will ship goods to your warehouse if you have your own freight company
Necessary for quotation:
1. Quantity you need
2. Strap Width Color
3. Length (short end & long end)
4. LC (load capacity) or MBS (min. Breaking strength)
5. Any special requirements on the ratchet type and hook type?( photos will be helpful lf you have)

Company Profile
About Us
Changzhou Z&J Sling Co., Ltd is a quickly developing enterprise with 7 years of history. Our factory is China's foremost producer of webbing slings, flexible round slings, synthetic slings, tow straps, and ratchet tie-down (cargo lashing).
https://zjsling.en.made-in-china.com/company-Changzhou-Z-J-Sling-Co-Ltd-.html
We are implementing the newest EN 1492 & 12195/2 norms in production and have formed complete testing methods and a quality-guarantee system. It is the company that gets TUV CE & GS certificate in this field and also gets the ISO9001 certificate.

As we only focus on original manufacturing, we can provide competitive prices and guaranteed quality products to our customers. Z&J is your trusted and reliable business partner.
https://zjsling.en.made-in-china.com/contact-info.html
If you are interested in our products, Please leave messages to us! Thank you so much.

---
