Automatically Length-Measuring System for Pipe Cutting (PCMLS-24A)

Product Description

Pipe Cutting Length-Measuring System
Model: PCMLS-24A
Performance features

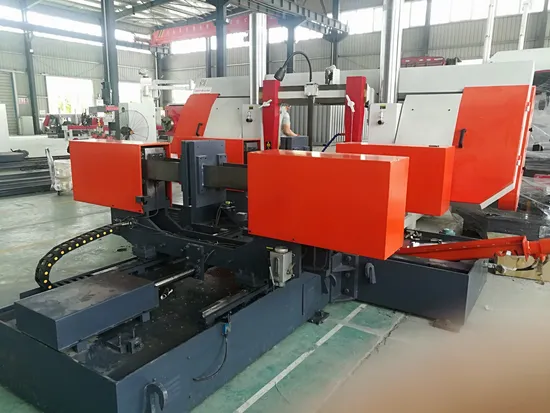

This system can be equipped on the Fixed-type Highly-efficient Pipe Cutting & Beveling Machine and Band Saw Machine if required so as to fix the pipe length and cut it and the process of length-measuring is unnecessary then.
A mechanical length-measuring device is adopted in this system to increase the accuracy and reliability. It is control with PLC touch screen; Firstly, the gear teeth driven by a motor move the length measuring arm to the location of the defined length, and the pipe stops when it contacts the contact point on the length measuring arm; Then the length that the pipe extending out of the cutter of the beveling machine is just the length for cutting the pipe.
Technical parameters
Pipe diameter applicable: DN50~600(φ 60~610)
Line length: 7M (or depend on the situation)
Moving speed: 0.5~14m/min
Sizing length: 6m (or depends on the situation)
Length error: ≤ 2mm
Pressure of Gas Power: 0.6Mpa
Measuring Method: Mechanically
Control System: PLC VF control and Touching Screen with man-machine interface.

Pipe diameter applicable:	DN50~600(φ 60~610)
Line length:	7M (or depend on the situation)
Moving speed:	0.5~14m/min
Sizing length:	6m (or depends on the situation)
Length error:	≤ 2mm
Pressure of Gas Power:	0.6Mpa
Measuring Method:	Mechanically
Control System:	PLC VF control and Touching Screen with man-machine interface

our company is the most innovation ability provider of integrated solutions for piping fabrication, also is the unique provider of professional piping plant design software & management software system and piping equipments in China which included pipe spool fabrication line, cutting equipments, beveling equipments, fitting up equipments, handling equipments, welding equipments.

---
