4-12mm Semi-Automatic Wire Mesh Welding Machine

US$115,000.00
1-2 Sets
US$110,000.00
3+ Sets

Basic Info.

Model NO.
GWC-B-2800
Voltage
380V
Style
Semi-Automatic
Warranty
1 Year
Model No
Gwc-B-2800
Usage
Welding Mesh Panels
Max Mesh Width
2800mm
Mesh Length
6000/12000mm
Wire Diameter
4-12mm
Line Wire Spacing
50-400mm
Cross Wire Spacing
25-400mm
Line Wire Feeding
Pre-Cut Bar
Cross Wire Feeding
Pre-Cut Bar
Transport Package
Safety Export Package
Trademark
YZ
Origin
China
Production Capacity
20 Sets/Month

Product Description

Product Description

Dedicated in resistance welding machine for more than 20 years,Yizhou provide you one-stope welding machine professional solution

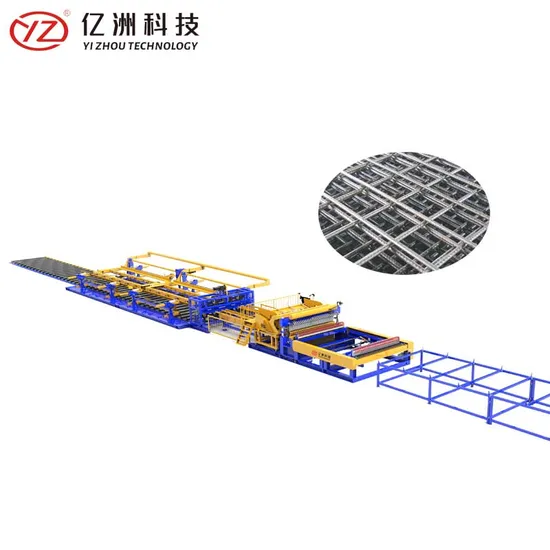

GWC-B-2800 wire mesh welding line is designed for producing reinforcement mesh used in the field of railway, high way, building construction etc.
The line wire spacing is more than 50mm adjustable, it can meet the requirement of various line wire spacing change.
We have experienced R&D department to customize the welding machine according to your requirement.
Product Parameters
No. Item Specification
1 Wire Diameter 4-12(mm)
2 Line Wire Spacing 50-400mm(increment by 50)
3 Cross Wire Spacing 25-400mm(infinitely adjustable programming)
4 Max Mesh Width 2800mm
5 Max mesh length 6000-12000mm
6 Number of Electrodes 28
7 Welding Speed 50-80 cross wires/min
8 Rated Voltage Three phase,380V,50Hz(according to requirement)
9 Rated Power 14*150KVA
10 Line Wire Feeding Pre-cut bars
11 Cross Wire Feeding Pre-cut bars ,automatic blanking
12 Material Low carbon round rebars or ribbed rebars
13 Mesh Pulling Way CNC servo motor

Detailed Photos
Application

Contact Us
To know more information of machines,please contact us
Ms.Lancy
