Product Details
Product Description
Product Description
Product Description

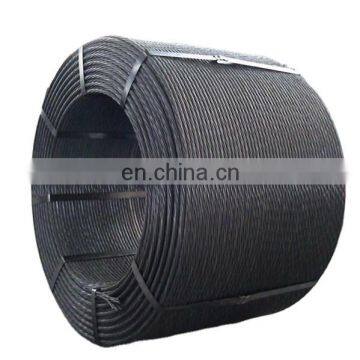

PC STRAND.
structural: 1*3/1*7/1*19
Dia:9.53mm, 11.11mm, 12.7mm, 15.24mm,15.7mm
Characteristic: high tensile, low relaxation
Standard: ASTMA416; BS5896;GB/T 5224
Tensile strength: 1860MPa
Low relaxation: 2.5%, Coil weight: (2-3.5)MT
Packing: standard export anti-rust packing(Wrapped by steel strips, waterproof cloth sheet, wooden pallet)
Detailed Images
PC STRAND Production Process Flow .Raw material -Acid washing-----Wire Feeding----Wire drawing---wire stranding ---Heat treatment---Packing--Loading---delivery
PC strand.
ASTM A416
BS5896
JIS G3536
GB/T5223
EN10138
Unbonded steel strand.
unbonded steel strand
Left and right hand lay
Epoxy coated strand.
Epoxy coated strand
Inner diameter: 760mm
Outside diameter: 1400mm max
Coil's width: 760mm
Coil's Weight: 2500-3500kg
Packing & Delivery
PC STRAND packing & delivery details
(1)In Container.
(2)Coil at customer's requirement. (water-proof packing with wood pallets)
(3)Each coil is strapped by steel bands at 8 places, fully wrapped with anti-rust plastic & P. P woven sheet with pallet and strapped again by steel bands at 6 places.
Specification of pc strand: Standard of ASTM416
|
|
|
|
|
|
|
|
|
| mm
|
| mm
| mm2
| KG/1000m
| KN
| KN
| Min.
|
| Nominal Diameter
|
| Diameter tolerance
| Nominal area
| Nominal weight
| Min.Breaking strength
| Min.Yield strength
| Elongation
|
250
| 0.375
| 9.53
| ±0.4
| 51.61
| 405
| 89
| 80.1
| 3.50%
|
| 0.438
| 11.11
|
| 69.68
| 548
| 120.1
| 108.1
|
|
| 0.5
| 12.7
|
| 92.9
| 730
| 160.1
| 144.1
|
|
| 0.6
| 15.2
|
| 139.35
| 1094
| 240.2
| 216.2
|
|
270
| 0.375
| 9.53
| +0.65
| 54.84
| 432
| 102.3
| 92.1
|
|
| 0.438
| 11.11
| -0.15
| 74.19
| 582
| 137.9
| 124.1
|
|
| 0.5
| 12.7
|
| 98.71
| 775
| 183.7
| 165.3
|
|
| 0.6
| 15.24
|
| 140
| 1102
| 260.7
| 234.6
|
|
