Product Details
Product Description
Product Description
Brand: Mitsubishi

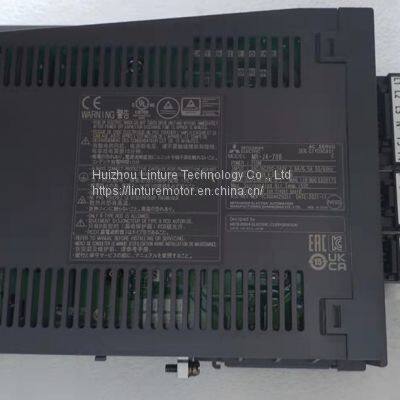

Product Name: servo driver model: mr-j4-70b1 axis servo amplifier.
Mitsubishi universal AC servo amplifier melcervo-j4 series. Rated output:
0.75KW. Interface: sscnet Ш/ H。 Power supply: = phase ac200v
The same server amplifier supporting sscnet Ⅲ / h.
A fully synchronous system using high-speed serial optical communication can be
established.
It can be combined with the servo system controller to give full play to the
functional performance of the servo system. By supporting the seismic algorithm
of three inertial equipment, it can vibrate at two low frequencies at the same
time. Mr configurator2 enables easy adjustment
The low-frequency aftershock effect below 100Hz generated by the front end of
the boom or the main body of the device can be effectively reduced, and the
time required for aftershock control can be effectively shortened
The accuracy of arc trajectory can be improved in the trajectory control of XY
slide,
At the same time, it can effectively control the quadrant protrusion caused by
friction and distortion,
Servo motor series: low inertia, medium and large capacity. Rated output:
15.0kw. Rated speed; 1500r / min. electromagnetic braking: without. Power
supply: 200V.
It is suitable for high-frequency operation or high acceleration and
deceleration operation of medium, large capacity and low inertia products.
Mitsubishi mr-j4-70b improves the environmental resistance. Hg-sr and hg-jr
series products adopt IP67.
High speed & high torque, shorten positioning time and realize high-speed
equipment mr-j4-70b100 sites, there are 100 different drive controls. In order
to meet diversified and detailed site needs as much as possible,
In the configuration of mr-j4 product line, it provides rich servo amplifier
and servo motor products. It can meet the different needs of different
customers. Servo motor series: low inertia, small capacity. Rated output: 0.1kw
Mitsubishi mr-j4-70b, rated speed: 3000r / min, electromagnetic braking:
without. Power supply: 200V.
The rated speed is 3000r / min and the large speed is 6000r / min.
The high torque is 350% of the rated torque, realizing high knowledge transfer
in the field of high rotation. It only supports hg-kr series products. Built in
position encoder with high resolution
Provide standard high-resolution position encoder (4194304p / rev (22bit)) to
achieve more positioning function of Mitsubishi mr-j4-70b,
Improve the environmental resistance. IP65 is adopted for hg-kr, hg-mr, hg-rr
and hg-ur series products. Mitsubishi Electric general AC servo amplifier
melcervo-j3 series. Rated output: 22.0kw.
Interface type: CC link communication type (built-in positioning function)
Mitsubishi servo driver. Power specification: three phase AC400V
The positioning operation is realized by setting the position and speed data in
the positioning table and receiving the start signal from the main controller.
The setting of position, speed and other data in the positioning table and the
start and stop operation can be completed through CC link communication. When
the servo unit (dj-01-link) and (DJ-3) can not be used for positioning through
communication, dj-01-link can be used for positioning.
Using the servo amplifier with built-in positioning function, the position,
speed and other data can be set through CC link communication. (corresponding
to CC link version ver. 1.10)
The Mitsubishi servo driver can be started, stopped and monitored through CC
link communication. Serial communication reduces wiring
The distributed servo control system can be constructed through CC link
communication.
The parameter unit mr-pru03 (option) makes parameter setting, operation and
easier. The servo amplifier can be operated by dry speed control.
When both stations are occupied, the speed command can be set directly through
the remote passenger memory. Servo motor series: medium inertia, small
capacity, rated output: 2.0kw.
Rated speed: 1000r / min. electromagnetic braking: attached. Power supply:
200V.
Realize the stable driving mr-j4-70b of medium capacity, medium inertia
products, and realize the small total length in the industry through optimized
structural design.
High speed & high torque Mitsubishi mr-j4-70b can shorten positioning time,
realize high-speed equipment and reduce power on torque ripple.
By combining the number of poles and slots of Jiahua motor, the power on torque
ripple is greatly reduced, and the smooth and constant speed operation of the
equipment is further realized.
To improve the environmental resistance, hg-sr and hg-jr series products adopt
IP67
>>
