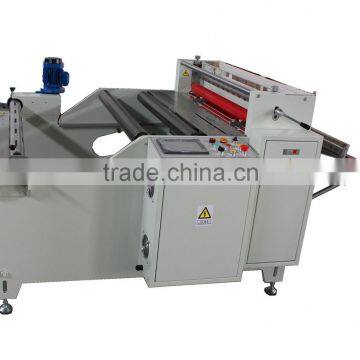

Automatic Adhesive Paper Roll to Sheet Cutting Machine

Product Description

Product Description
Automatic Adhesive Paper Roll to Sheet Cutting Machine
Below is 5 standard size details of this paper roll to sheet cutting machine
Model
360 Sheet cutter
500 Sheet cutter
600 Paper Roll to Sheet Cutting Machine
Max Feeding Width ( mm )
360
500
600mm
Main Engineer Power ( w )
150
400
750
Speed ( t/m )
110
110
100
Size ( mm )
1150*1050*1230
1250*1090*1250
1300*1200*1250mm
Weight ( kg )
400
500
700
Precision ( mm )
±0.05
±0.05
0.05mm
Power
220V 50HZ
220V 50HZ
220V or 380V

ModelDP-1000 sheet cutting machineDP-800 paper cutting machine
Voltage220V4HP
Power4HP 380V
N.W. 1800KG1500KG
Sheeting Length 0.1-9999.9mm0.1-9999.9mm
Sheeting width1-1000mm1-800mm
Sheeting precision±0.05mm±0.05mm
(0-180mm)Sheeting speed -- 75(cut/min)75(cut/min)
Machine size1950x1800x1350mm1700x1650x1350mm
unwinding shaft diameter3 inch3 inch
unwinding diametermax 600mmmax 600mm

Functional Characteristics:
Machine adopts imported PLC overall control with touch screen display, simple and ease of operation. Fast cutting speed, high precision.
Purpose:
It is applicable for the cutting of PVC film, insulation sheet, Mylar, foam, industrial tape, electronic tape and various inch setting, entirely broken and partially broken electronic materials.
Electrical listing:
Touch Screen
KUNLUN(MCGS)
Beijing(Made in China)
Programmable Controller
MITSUBISHI
Made in Japan
Servo Driver
MITSUBISHI/delta
Made in Japan/taiwan
Servo Motor
MITSUBISHI/delta
Made in Japan/taiwan
Motor of cutting knife
TPG
Made in Taiwan
AC Contactor
RENMIN
(Shanghai)Made in China
Solid State Relay 20A
Guguang
(Shanghai) Made in China
Electric eye
Panasonnic
Made in Japan

Optional function : mark searching :
razor knives on for slit function :
able to slit and cut rectangular size in ONE continuous operation from jumbo roll
Optional heating cutting material :
Optional connect to other machines :
