Basic Info.
Forging Forming Method
Mold Forging
Power Source
Hydraulic Pressure
Certification
CCC, ISO9001, CE
Advantage
Simple Structure
Cylinder Pressure
6000-80000
Rolling Linear Speed
1.5-2.5
Center Height of Rolling Roller
670-1780
Transport Package
Wooden Box
Production Capacity
100set/Year
Product Description

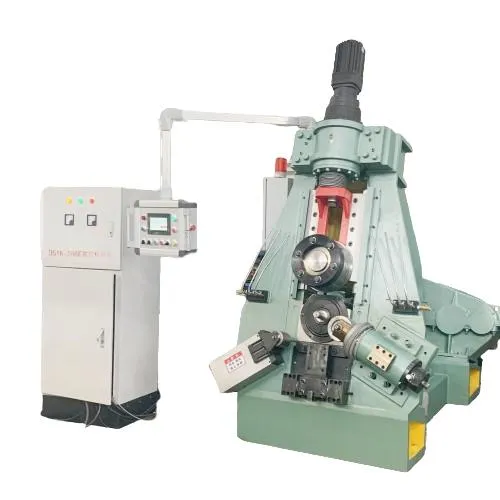

Automatic Steel Flange Making Machine NC Radial and Axial Ring Rolling Machine Ring Forging Line
Product Description
Ring rolling is made on special ring rolling machine (also called ring expanding machine),which reduces the thickness and enlarges the inner diameter and outer diameter of the work piece to get required cross section.
Novel appearance,beauty,light weight, good rigidity, high precision, tight structure, safe using and convenient operation as well easy maintenance are the characteristic for the ring rolling machine.
Ring rolling machine is widely used for bearing forging industry. All kinds of inner rings and outer rings of bearing rings can be rolled on it. Bearing rings track and baffle also can be rolled. Our ring rolling machine is widely used in China, also exported to Belgium, Russia, Romania, Turkey, South Korea, India, Pakistan etc more than 10 countries in the world.
Product Parameters
Code Meaning of Ring Rolling Machine
Q means pneumatic driving
Y means hydraulic driving
D means normal type machine with middle and narrow width
E means machine with large width
F means machine with special large width
| Type | Unit | 160D | 160E | 250D | 250E | 350D | 350E | 500E | 630E | 800E | 1000E | 1000F |
| The ring size | Max.OD | mm | 45-160 | 200 | 250 | 300 | 350 | 350 | 500 | 630 | 800 | 1000 | 1500 |
| Max.Width | mm | 35 | 70 | 50 | 120 | 85 | 200 | 200 | 200 | 200 | 200 | 350 |
| 250 | 450 | 450 | 450 |
| Max.Productivity | pcs/hour | 700 | 600 | 500 | 240 | 200 | 120 | 90 | 80 | 60 | 50 | 40 |
| Cylinder Pressure | kg | 6000 | 11300 | 9800 | 19600 | 15500 | 30000 | 32000 | 38000 | 58000 | 80000 |
| 42000 | 80000 |
| Max. Stroke of Sliding Block | mm | 70 | 70 | 110 | 110 | 130 | 130 | 130 | 200-350 |
| 250 | 250 |
| Rolling Linear Speed | m/sec | 2-2.5 | 1.64 | 2.1 | 1.63 | 2.2 | 1.45 | 1.5 | 1.47 | 1.5 | 1.5 | 1.5 |
| Speed of Main Shaft | r.p.m | 120 | 92 | 80 | 62.3 | 62 | 41 | 40 | 38 | 38 | 38 | 38 |
| Rolling Wheel OD | mm | 360-380 | 500-520 | 680-700 | 680-700 | 700-720 | 700-20 | 760-820 | 760-820 | 820 |
| Oil Cylinder Hydraulic Pressure | mpa | 4 | 5 | 6 | 6 | 8 | 10 | 12 |
| Compressed Air Pressure | kg/m² | 5 | 5 | 5 | 6 | Oil pressure |
| Compressed Air Consumption | m³/min | 0.9 | 1 | 1.8 | 1.6 | 1.62 | 2.4 | 2.4 | 2.4 |
| Center Height of Rolling Roller | mm | 670 | 670 | 875 | 875 | 1050 | 1100 | 1200 | 1250 | 1350 | 1600 | 1780 |
| Min. Distance Between Rolling Wheel Center and Rolling Roller Center | mm | 185 | 185 | 265 | 265 | 365 | 365 | 375 | 385 | 410 | 410 | 410 |
| Main Motor Power | kw | 18.5 | 30 | 37 | 55 | 75 | 90 | 90 | 90 | 132 | 132 | 160 |
| 110 | 160 | 160 | 185 |
| Hydraulic Motor Power | kw | 4 | 7.5 | 11 | 11 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| 18 | 18 | 18 |
| Total Weight | kg | 3200 | 3500 | 7000 | 7800 | 12000 | 13800 | 14500 | 15000 | 24000 | 25000 | 26000 |
Our Advantages
A. Appearance of machine is novel, machine base is weld-forming by steel plate, so structure is light with good rigidity.
B. Reasonable and scientific design for machine tool, especially new design and development of distribution of main shaft bearing, it has high rolling accuracy.
C. Upper sliding block is rectangle section with good rigidity. The length of guide rail of sliding block is increased to 5-6 times of sliding block journey, guide accuracy is high.
D. Main parts of machine are all made of cast steel or high-quality alloy steel.
E. Sealed lower supporting bearing makes the normal working in bad condition.
F. YX seal and 0 type ring are adopted in accordance with lnternational standard, cylinder is low resistanceperformance is reliable and good abrasive resistance
G. The rolling wheel is fixed with an internal cone-shaped expansion ring and its locating accuracy is high, therolling wheel can be disassembled and replaced easily.
H. The precision rolling structure is driven in a synchronized mode and run smoothly, a wide adjusting rangeis available.
I. A muffler is equipped for exhausting system of gas pipeline to reduce noise and protect environment.
After Sales Service
Packaging & Shipping
FAQ
Q1: Are you a trading company or a manufactory?
A1: We are a manufactury we supply the factory price with good quality, welcome to visit !
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based
on your destination port.
Q4: How to install my machines when it arrives?how much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines.
Customer pay airtickets go and back,accommodation and USD100/day/person.
Q5:How long time for installation?
A5:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we
will supply the spare parts with our cost including the delivery fees.
Welcome to inquiry us!
>>
