Basic Info.
Function
High Temperature Resistance
Metal Color
Copper Nature
After-sales Service
Online
Grade
Cu-Dhp, Cu-AG, Cu-Cr-Zr
Coating
Chrome or Alloy Coating
Transport Package
Wooden Case
Specification
80*80-200*200
Production Capacity
500000PCS/Year
Product Description
Product Description
Copper Mould tube
To provide mould tubes with optimal physical and mechanical properties to customers' specifications, mould tube products are supplied of the following materials:
Cu-DHP: Normally used for mould tubes section size below 180x180mm and round tubes below Dia.150mm.
Cu-Ag: Normally used for mould tube section size above 180x180mm and round tubes above Dia.150mm.
Cu-Cr-Zr: Normally used for beam blank mould tubes
These materials have different levels of hardness and thermal conductivities. We are highly experienced in choosing proper materials to meet the specific demands in heat resistance and thermal conductivities of customers' applications.
Product Parameters
| Copper Mould Tube |
| Item | Unit | Size | Thickness | Length | Radius |
| Square Copper Mould Tubes | mm | 50*50-500*500 | 6-50 | 700-1100 | 4000-17000 or Straight |
| Round Copper Mould Tubes | mm | φ110-1200 | 10-50 | 700-900 | 5000-17000 or Straight |
| Rectangle Copper Mould Tubes | mm | (100-500)*650 | 6-50 | 700-1100 | 4000-17000 or Straight |
| Beam Blank Copper Mould Tubes | mm | Customized | 12-50 | 780-1016 | 6000-17000 |
| Non-standard Copper Mould Tubes | mm | Customized | 12-50 | 780-1016 | 6000-17000 |
| Metallurgy of Copper Mould Tubes |
| Material | Cu-DHP | Cu-Ag | Cu-Cr-Zr |
| High Phosphorus Deoxidized Copper | Cu-Ag(Cu-0.1Ag) | Cu-Cr-Zr(Cu-0.6Cr-0.15Zr) |
| Properties | Normal Deoxidized Copper | Through the addition of about 0.1% silver,strength is significantly enhanced with no loss in thermal conductivity | Cr and Zr precipitation hardening provides this alloy with high strength, high resistance to heat, and thermal conductivity |
| Melting point | 1083ºC | 1083ºC | 1078ºC |
| Coefficient of thermal expansion at 20ºC | 1.68*10-5 | 1.68*10-5 | 1.70*10-5 |
| Thermal | 340w(m.K) | 377w(m.K) | 325w(m.K) |
| Recrystallization | 330ºC | 370ºC | 700ºC |
| Hardness at 20ºC | Min.85HB | Min.90HB | Min.120HB |
Production Photos
Quality Inspection
Detailed Photos

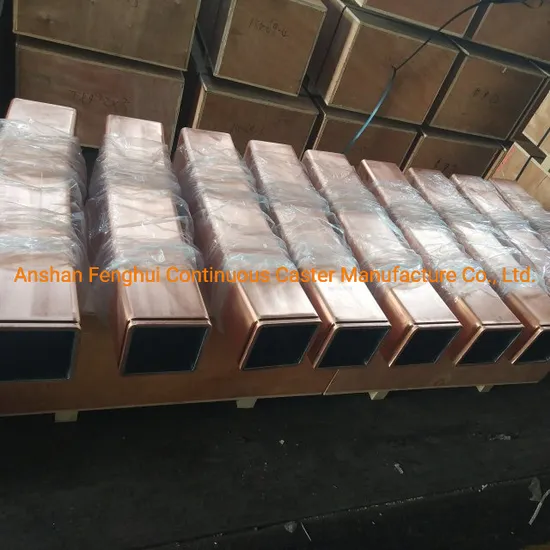

Packaging & Shipping
Company Profile
Anshan Fenghui Continuous Caster Manufacture Co,.Ltd is a manufacturer of CCM with more than 30years history. And our factory with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in STEEL and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
>>
