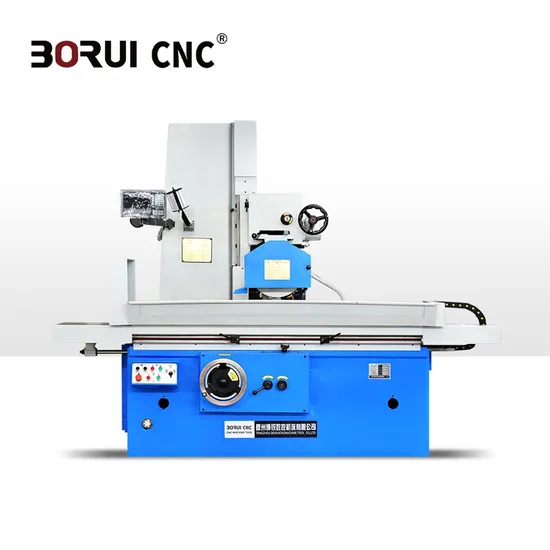

Higher Precision M7140X1000 Grinder Machine Price Automatic Precision Surface Grinder Machine

Product Description

Higher Precision M7140x1000 Grinder machine price automatic precision surface grinder machine
Product Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:

Model		M7140-1000	M7140-1600	M7140-2000
Table size (length×width)	mm	1000×400	1600×400	2000×400
Max. longitudinal stroke of worktable	mm	1100	1700	2100
T-slot of worktable number of slots×width of slot		3×18	3×18	3×18
Table speed (infinite)	m/min	3--25	3--25	3--25
Max. distance from the center of the grinding wheel shaft to the worktable	mm	575	575	575
Max. stroke of grinding head Horizontal (manual and hydraulic)	mm	440	440	440
Max. stroke of grinding head Vertical (manual)	mm	400	400	400
Rotating Speed of Grinding Wheel Shaft	rpm	1440	1440	1440
Grinding wheel size (outer diameter×width×inner diameter)	mm	350×40×127
Vertical feed handwheel dial value	mm	0.01	0.01	0.01
Grinding head feed per turn of handwheel	mm	1.00	1.00	1.00
Total motor power	kw	11	12	12
power	kw	7.5	7.5	7.5
Rotating speed	r/min	1440	1440	1440
power	kw	0.37	0.37	0.55
Rotating speed	r/min	1440	1440	1440
Oil pump motor	kw	3	4	4
Rotating speed	r/min	960	960	960
Cooling pump motor	kw	0.125	0.125	0.125
Rotating speed	r/min	2800	2800	2800
flow	L/min	100	100	125/50
Work pressure	MPa	1.5	1.5	1.5
Parallelism of the machined surface to the base surface	mm	1000:0.015	1000:0.015	1000:0.015
Surface roughness	μm	Ra0.63	Ra0.63	Ra0.63
net weight/Gross weight	kg	3800/4200	5300/6000	6300/7000
Overall dimensions (length×width×height)	mm	2700×1750×2100	4400×1750×2100	5400×1750×2100

Details Display
