Hot-Selling Crane Electric Hoist CD/MD0.5-32 Tons 380V Running Fixed Wire Rope Electric Hoist

Product Description

Product Description

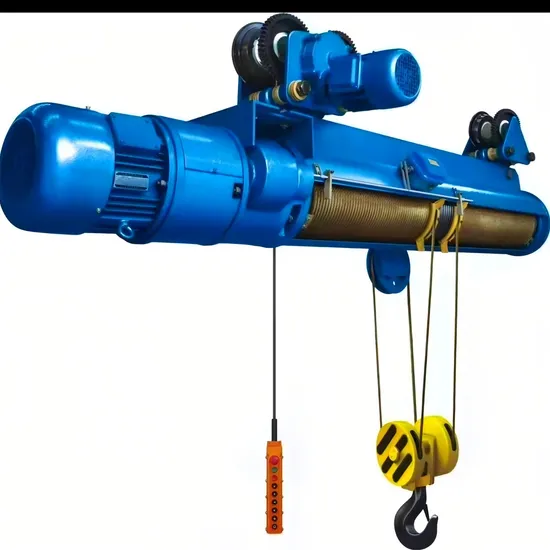

Electric Motorized Wire Rope Hoist hold the characteristic as compact structure, light dead weight and easy operation. It can be installed on I-steel or working together with single beam crane, double beam crane, jib crane and so on. For the high precision, MD type with double lift speeds will be the better helper. Conical rotor motor adapted, combine the power and brake power into one. High strength steel material for hook, and hook lock included. Current overload, voltage overload, and other safety device for electrical parts.Control voltage as 36V, safe for operation. Chain hoists can be divided into manual hoists and electric hoists. Manual hoists are usually used for short-distance lifting of small equipment and goods, while electric hoists are suitable for occasions that require higher efficiency and precision. The internal structure of the chain hoist includes a motor, a reducer, a load-limiting clutch, a brake, a limit switch, a weighing sensor, and a chain. Among them, the brake, weighing sensor, limit switch, and chain are core safety components. The manual hoist lifts or lowers the weight by pulling the manual chain clockwise or counterclockwise, while the electric hoist can be driven by a motor to achieve automatic operation. European electric hoist is an electric lifting machinery that adopts European technology and standards. It has the characteristics of compact structure, light weight, safety and reliability, excellent performance, and easy maintenance. European electric hoists can be divided into two types: chain type and wire rope type. Product Parameters
Send your special needs

Type		CD1,MD1
Lifting weight(T)		0.25	0.5	1	2	3	5	10	16	20
Lifting height(m)		3.6.9		6.9.12.18.24.30					9.12.18
Hoistingspeed(m/min)		8 0.8/8						7 0.7/7	3.5 0.35/5	4
Travelling speed(m/min)		20	20/30						20
Wire rope	Dia	3.6	4.8	7.7	11	13	15	15	1735	19.5
	spec	6×19	6×37+1
Hoisting Motor	Type	ZD112-4	ZD121-4	ZD122-4	ZD131-4	ZD132-4	ZD141-4	ZD151-4		ZD152-4
			ZDS0.2/0.8	ZDS0.2/1.5	ZDS0.4/3.0	ZDS0.4/4.5	ZDS0.8/7.5	ZDS1.5/13	ZDS1.5/13
	Power(kw)	0.4	0.8 0.2/8	1.5 0.2/5	3.0 0.4/3.0	4.5 0.4/4.5	7.5 0.8/7.5	13 1.5/13	13 1.5/13	18.5
	Rotate speed	1380(r/min)
	Current(A)	1.25	2.4 0.72/2.4	4.3 0.72/4.3	7.6 1.25/7.6	11 2.4/11	18 2.4/18	30 4.3/30		41.7
Travelling Motor	Type	ZDY110-4	ZDY111-4		ZDY112-4		ZDY121-4
	Power(kw)	0.06	0.2		0.4		0.8	0.8×2
	Rotate speed	1400(r/min)	1380(r/min)
	Current(A)	0.3	0.72		1.25		2.4			4.3
NO of connecting		120
Working system		IntermediateFC=25%M3
Power source		380V 50HZ 3phs
We design and manufacture all kinds of products according to your requirement

Application
1. Construction sites: On construction sites, cranes are often used to move heavy objects, hoist prefabricated components, install steel structures, etc. Cranes can improve work efficiency, reduce labor intensity, and ensure construction safety. 2. Port terminals: On port terminals, cranes are usually used to load and unload goods, such as loading and unloading containers, loading and unloading bulk cargo, etc. The high efficiency and large load capacity of cranes can meet the needs of large-scale cargo. 3. Iron and steel metallurgical industry: In the iron and steel metallurgical industry, cranes are widely used for moving and loading and unloading heavy objects in the production process of ironmaking, steelmaking, and steel rolling. The stability and strong carrying capacity of cranes can meet the needs of metallurgical engineering. 4. Mines and quarries: In mines and quarries, cranes are used for moving and loading and unloading heavy objects in the process of mining and quarrying. The flexibility and high efficiency of cranes can adapt to changing working environments and needs, 5. Clean energy equipment installation: In the field of clean energy, cranes are often used for the installation and maintenance of equipment such as solar panels and wind turbines. Cranes can quickly, safely and efficiently lift equipment to a suitable position. 6. Infrastructure construction: In infrastructure construction, such as bridges, highway tunnels and other construction processes, cranes are often used to lift large components such as bridge beam sections and concrete beams. Company Profile
Shandong Heavy Crane Co., LTD, mainly engaged in bridge crane, gantry crane, European crane, electric hoist, garbage crane, metallurgical crane, multi-function crane, explosion-proof series crane, bridge erecting machine, beam lifting machine, shipbuilding door crane and other cranes manufacturing and sales.
The company follows the values of integrity, morality and pursuit of quality, and takes excellent quality, professional literacy and good service as the basis for sustainable management.
"Let the world know us, let us go to the world". Our products strive for perfection in detail, innovation wins the future.
Packing and Shipping

Success cooperation
FAQ
Q1: Are you Manufacturer or Trading Company?
A1:We are an integrated industrial and trade enterprises. We have our own R&D team, factory and marketing department.
Q2: Which standard of your crane and crane components apply to?
A2: Our Crane can design and manufacture base on FEM, CMAA, ISO EN, GB standard.
Q3: How do you ensure your product quality?
A3: All our processes strictly adhere to ISO-9001 procedures, which include Material Traceability, ISO WPQR and welder certificate, Measuring Device Calibration, NDT for the welding, and full assembling and load testing before delivery.
Q4: How can I make payment?
A4: We accept T/T bank transfer, L/C, Paypal.
Q5: How can I assembly the cranes in my factory?
A5: We suggest you to recruit a crane service team in local to install the crane base on our Installation Guideline and User manual. If cannot, we can send engineer to your factory to guide you do the installation with extra charge, and the transportation, accommodation, translator shall be covered by your side also.
Q6: What is the warranty period, and how can I claim warranty If my crane have any issue?
A6: Our warranty period is 12 months after cargo leave China port. If the crane have any issue, our after-sales team and engineer will help you solve the issue by email or Video conference. If the defect is caused by quality issue, we will ship the spare parts to you by air to help you fixed it as soon as possible.
Q7: Do you accept OEM business?
A7: Sure, we do many OEM productions for some famous crane brand and customers around the world.
Q8: What about shipping?
A8: We recommend small batch by the way of air or LCL, but large delivery by the way of container or bulk vessel.
Q9: What about delivery time?
A9: Different capacity crane and components have different estimated delivery time, generally speaking, around 4 weeks to 8 weeks.
Q10: What is your company policy if we want to distribute NANTE product in our market?
A10: Firstly, thank you for your interest to promote NANTE brand, we have distributors in 50+ countries, pleaes no hesitate to contact us for the detail discussions, as we have different policies for the different target markets. Surely, you are welcomed to visit our factory and let's talk face to face.

---
