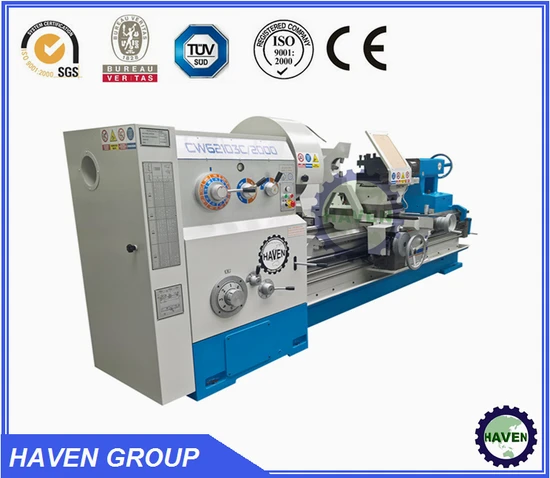

CW6293C/2000 Metal Heavy Duty Lathe Machine

US$99.00-99,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
CW6293C/2000
Tool Holder
4 station tools
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
max. swing diameter
930mm
max. workpiece length
2000mm
spindle bore diameter
105mm or 130mm
Transport Package
Wooden Pallet
Specification
CW6293C/2000
Trademark
HAVEN
Origin
China
HS Code
846694
Production Capacity
50 Units Per Month

Product Description

CW6293C/2000 Metal Heavy Duty Lathe Machine
Main Features:
This series horizontal lathe has good reputation in this line and populated by customers in domestic and abroad. It including: CW663C, CW6 73C,CW683C, CW693C, ect. Distance between centers are 1000mm,1500mm,2000mm,3000mm,4500mm,6000mm.
Main Specifications:
Model Unit CW6163C
CW6263C
CW6173C
CW6273C
CW6183C
CW6283C
CW6193C
CW6293C
Swing over bed mm 630 730 830 930
Swing in gap mm 800 900 1000 1100
Swing over cross slide mm 350 450 550 650
Distance between centers mm 750,1000,1500,2000,3000,4500,6000
Length in gap from face plate mm 300
Spindle nose Cll or D11
Spindle bore mm 105,130
Spindle speeds rpm/steps 10-800/18
Cross slidle travel mm 480
Top rest travel mm 225
Rapid traverse mm/min 3200,1900
Quill diameter mm 90
Quill travel mm 260
Quill taper MT5
Bed width mm 550
Metric threads mm/kinds 1-240/53
Inch threads tpi/kinds 30-2/31
Module threads mm/kinds 0.25-60/46
Diametral pitch threads Lpi/kinds 60-0.5/47
Main motor power kw 11
Packing size Length mm 3460,3390,3795,4330,5310,6810,8310
Width mm 1400
Heigth mm 2000
