Hf Mini Hot Press Machine for Door Pocket Sealing

Product Description

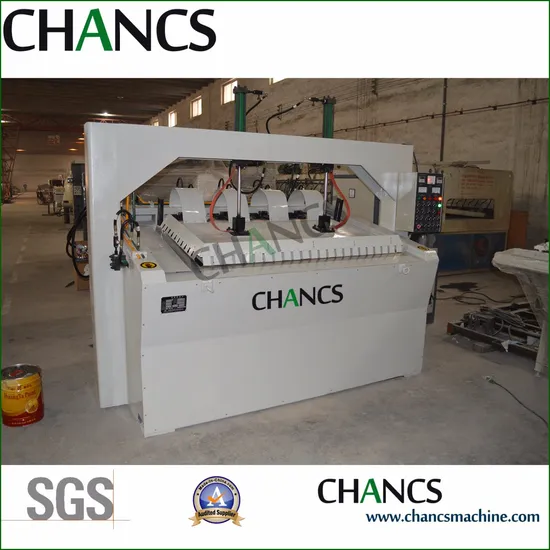

HF Mini Hot Press for Cabinet Door Assembly

1. Introduction:
High frequency mini hot press is short of HF mini hot press. It is multi-functional machine. Can be used to assemble the solid wood door (with or without glass), window, cabinet door etc. With three direction pressure design, it can also make edge glued panels, door pocket sealing and batten sealing projects. Machine applied high frequency generator. High freuqneyc is selective heating method, which only heats glue. The whole frame or panel will not be heated. In this way, production time and energy can be highly saved.1-2 mins can finish one cycle. Wish skillful operator, one machine can finish more than 100 pieces solid wood doors per day (8 working hours). HF door assembly machine has slat working table design, which is humanistic for workers loading and upload doors. 3D hydraulic pressure can give uniform pressure on the door. Customer can adjust the pressure according to different thickness doors. Once produce small doors, hydraulic valve can be switched off accordingly.
2. Features:
1). High frequency internal heating, only heat the glue line, efficiently and energy saving.
2). 1-2 mins can finish one solid wood door.
3). Machine can protect the door surface from scratching.
4). Can assemble the frame via 3D pressure.
5). Inclined working table is more humanized and convenient for material loading.
6). International famous brand components and safety protection assure machine good and safe performance.
3.Parameter:

High frequency Mini Hot Press
Model	HFMP-1206-CH	HFMP-1608-CH
Working table	1200x600mm	1600x800mm
Working thickness	Below 40mm	Below 40mm
Control type	PLC control automatically
Power supply	3 phase 380V, 50Hz or customized
Output power	15KW	15KW
Frequency	6.78MHz	6.78MHz
Top Pressure	5T	15T
Side pressure	2.5T	6T
Door lifting pressure	2.5T	4T
Commutate mode	Three phase full wave silicon commutate
Cooling mode	Forced Air Cooled	Forced Air Cooled
Protection	Photoelectric protection for operator, over current protection, air pressure protection, over temperature protection, door switch
Delivery time	40 working days	35 working days
Components	Control components are Omron, Schneider, Moeller etc
Total weight	2500kg	3500kgs
Overal size (L*W*H mm)	Main press: 2000*1450*2200 Hydraulic station: 1000*950*1200 HF generator: 1100x 900x 1900mm	Main press: 2400*1650*2300 Hydraulic station: 1000*950*1200 HF generator: 1100x 900x 1900mm
Function	1). Solid wood frame 2). Batten sealing. 3). Door pocket sealing. 4). Solid wood door assembling. 5). Finger joint board joining.

4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q:Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q:What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q:What is warranty time?
R: One year.

---
