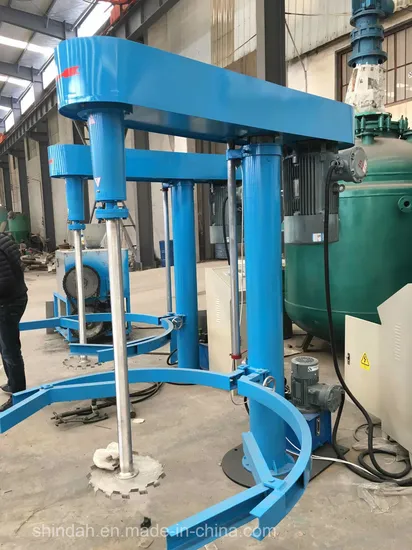

High Speed Dispersing Mixer for Paint/Resin

US$600.00-9,000.00 1 Set (MOQ)

Basic Info.

Model NO.
all sizes
Application Area
Chemical
Certification
CE, ISO, GOST
Condition
New
Mixing Drum Shape
Disc
Stirring Type
Dispersing Disc
Working
High Speed Mixer
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Pallet
Specification
as models
Trademark
Shindah
Origin
China
HS Code
847982
Production Capacity
1000 Sets/Year

Product Description


1. Features:
hydraulic lifting, 360ºturning, speed adjustable by frequency inverter. One mixer matched with 2 or 4 pieces tanks at the same time. The Lifting ranges 600mm-2300mm as per different models.
According to materials viscosity, double shaft dispersing mixers are available.

2. Advantages:
it can make the material quickly dispersed and dissolved, the particles become fine, with advantages such as evenly stirring no dead angle, easy cleaning; frequency conversion, digital speed display; working continuously for a long time, stable operation, small noise, hydraulic lifting stability.
3. Application:
Widely used in chemical, pharmaceutical, biotechnology, cosmetics, paints, inks, adhesives, dyes, pesticides, food and other liquid / liquid mixing, emulsifying and liquid / solid powder mixing, dispersion and tinting.
Material viscosity: ≤100000cps, solid content less 60% all kinds of slurry.
4. technical data:
Model capacity(L) Power(kw) speed(rpm) Disc dia(mm) Lifting range(mm) Hydraulic power(kw)
SDFS-1.5 ≤50 1.5 0-1450 150 600 0.55
SDFS -4 ≤200 4 0-1450 200 800 0.55
SDFS -7.5 ≤400 7.5 0-1450 230 900 0.55
SDFS -11 ≤500 11 0-1450 250 900 0.55
SDFS -15 ≤700 15 0-1450 280 900 0.55
SDFS -18.5 ≤800 18.5 0-1450 300 1100 0.75
SDFS -22 ≤1000 22 0-1450 350 1100 0.75
SDFS -30 ≤1500 30 0-1450 400 1100 0.75
SDFS -37 ≤2000 37 0-1450 400 1600 1.1
SDFS -45 ≤2500 45 0-1450 450 1600 1.1
SDFS -55 ≤3000 55 0-1450 500 1600 1.1
SDFS -75 ≤4000 75 0-950 550 1800 2.2
SDFS -90 ≤6000 90 0-950 600 1800 2.2
SDFS -110 ≤8000 110 0-950 700 2100 3
SDFS -132 ≤10000 132 0-950 800 2300 3

welcome to send your detailed inquiry!
