Mstar Core Veneer Dring Roller Machine Woodworking Machine

Product Description

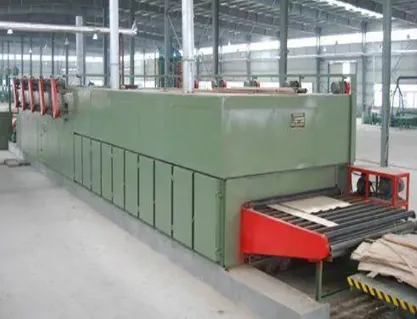

The veneer roller dryer machine is the main parts in plywood industry, and used to remove moisture from the veneer. The heat medium can be thermo oil and heat steam. The whole machine can be divided into two parts: heating section and cooling section. All the instruction can be operated in switch board. We can design the veneer dryer as customer`s project requirement.
Main Features
1) easy operation with high efficiency
2) Adopting advanced world famous brand components in electric parts and operation parts.
3) automatic feeding device is option
4) different capacity sizes for option
Wood veneer dryer's application for drying peeled veneers moisture, and make the dryed veneer moisture be suitable for making kinds of wooden products like plywood, lvl, wooden chairs and other products.

TYPE	GT3-54
LAYER	3
WORKING LENGTH	46m
FEEDINGWIDTH	3.5m
HOT AREA LENGTH	40m
PARTITION AREA LENGTH	2m
COOLING AREA LENGTH	4m
FEEDING LENGTH	5m
OUTPUT LENGTH	3m
ROLLER MATERIAL	CARBON STEEL
ROLLER DIAMETER	φ89mm
ROLLER THICKNESS	2.75mm
ROLLER LENGTH	3.5m
ROLLER DISTANCE	150mm
HOT FAN QTY	11KW×20SETS
COOLING FAN QTY	7.5KW×2SETS
RELEASE DAMPNESS	4 KW×2SETS
CONVEY MOTOR	7.5KW×3SETS
TOTAL POWER	269KW
FEEDING SPEED	ADJUSTABLE
CONTROL SYSTEM	FREQUENCY CONTROL
HEAT SOURCE	STEM/OIL 6T BOILER
DRYING CAPACITY	ABOUT 100m³/DAY
MAIN FRAME MATERIAL	SQUARE PIPE /CHANNEL/SCREW WELDING ASSEMBLY
DOOR	LASER FOLDING INSULATION GALVANIZED
DRYING TEMPERATURE	130-180ºC
FINAL MOISTURE	%6±1
INITIAL MOISTURE	80-100%
WEIGHT	ABOUT 120T
NOTE	LIFTING TABLE, AUTO FEEDING DEVICE EXTRA
PRICE	USD 223,600 EWX

MSTAR MACHINERY CO., LTD is located in Linyi city of Shandong, China, and it is a modern professional enterprise and specialized in research, development, production and distribution of woodworking machineries. Our leading products are high speed spindleless veneer peeling line, sanding machine, hot press, saw, debarker and so on. Our high speed automatic veneer peeling line has become the benchmark of the peeling industry, with the advantageds of high efficiency, energy saving , time saving and labor saving.
By offering qualified products, perfect services and honest sales, we earn the applause from the world, We sincerely look forward to cooperate with you!
Packaging & Shipping
WORKSHOP

Our Project

Why Choose Us:
lasering your logo on products and designing logo is free Inspect the machine before leaving the factory Oversea install and debug the equipment Train the first-line operator 24 hours online service Provide the VIDEO with install and debug the equipment Provide technical exchanging Delivery time within 30days No else charge MOQ≥1 Provide products quotation Provide Packaging customization service SupportWechat/Email/whatsapp/ We specializein this field for 25 years Excellent after-sale system Supporting visits to factory

---
