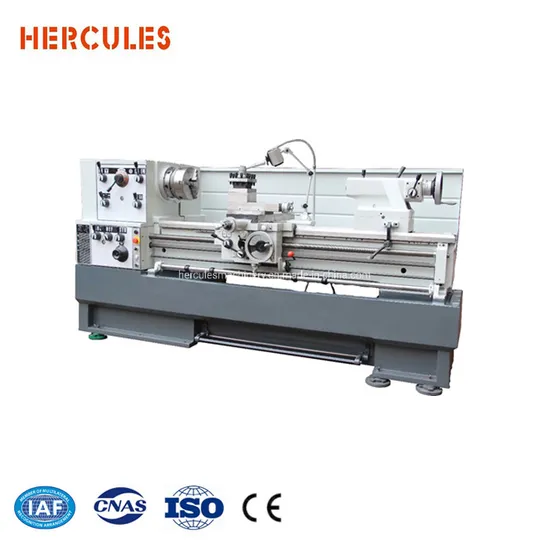

C6241 Conventional Metal Bench Turning Lathe Torno Cutting Milling machine

US$5,000.00-8,000.00 1 Set (MOQ)

Basic Info.

Model NO.
C6241
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Bed Type
Normal/Gap
Bed Size
1000/1500mm
Transport Package
Pallet
Specification
2170x1040x1340mm
Trademark
PLOTO OR OEM
Origin
China
HS Code
8458190000
Production Capacity
20000 Sets/Year

Product Description

Specification C6241(D)
Max. Swing over bed Φ410mm
Max. Swing over cross slide Φ224mm
Max. Swing over gap Φ640mm
Max. Length of workpiece 1000mm/1500mm
Width of bed 300mm
Spindle nose D1-6
Spindle bore Φ58mm (Φ82mm)
Taper of spindle bore M.T.#6
Range of spindle speed 12 changes 25-2000r/min
Max. travel of compound rest 120mm
Max. travel of cross slide 290mm
Leadscrew pitch Inch 4 T.P.I metric 6mm
Max. section of tool 25x25mm
Range of longitudinal feeds 42 kinds 0.031-1.7mm/rev
Range of cross feeds 42 kinds 0.014-0.784mm/rev
Metric threads range 41 kinds 0.1-14mm
Inch threads range 60 kinds 2-112 T.P.I
Diametrical pitches range 50 kinds 4-112 D.P.
Module pitches range 34 kinds 0.1-7 M.P.
Dia. Of tailstock sleeve Φ60mm
Travel of tailstock sleeve 120mm
Morse taper of tailstock sleeve M.T.#4
Power of main motor 5.5 kw (7.5HP)
Power of coolant pump 90 w
Hercules Machinery Equipment Ltd.

Standard Accessories:
1. Three jaw
2. Four Jaw Chuck
3. Face Plates
4. Steady Rest
5. Follow Rest
6.Coolant system
7. working light
8. Operation Manual
9. Foot brake system
10. Dead center
Optional Accessories:
1. 2-AXIS DRO 3-AXIS DRO
2. CE electrical components+leadscrew cover+chuck cover
3. Quick change tool post
4. Live center MT4#
5. Tool post cover
