Ergonomic Lateral Ploughshare Mixer for Anti-Corrosive Protein Blending

Product Description

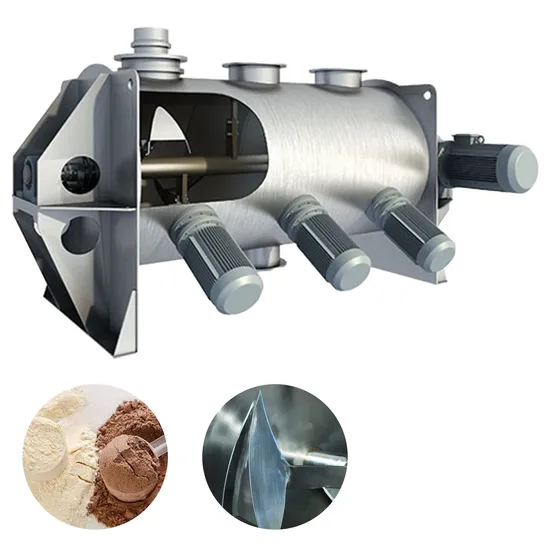

The Horizontal Ploughshare Mixer is a single-shaft forced mixing device equipped with multiple sets of ploughshare agitators. These agitators are staggered and continuously installed to avoid mixing dead spots. During operation, the staggered ploughs create continuous vortex centrifugal forces, leading to overlapping and scattering of the material flows, resulting in a boiling and convective circulation that rapidly mixes the materials.
For cohesive materials like fibers, damp clumps, or liquid-aggregated powders, the mixer includes high-speed choppers installed at a 45-degree downward angle on the mixer drum's side. The chopper blades extend into the drum, where materials driven by the ploughshares enter the effective range of the choppers, getting sheared at high speed for efficient de-agglomeration and separation.
The Horizontal Ploughshare Mixer is capable of handling the mixing of solid powders and granules, and is suitable for batch mixing processes that involve the addition of liquids. It is widely used in the food, chemical, and construction materials industries, and is particularly notable in applications such as food additives, pre-mixed mortar, composting technology, sludge treatment, rubber and plastics, and specialty construction materials. The powerful cutting action enables it to achieve high-performance mixing quality.
Product Features
1. Cantilever Shaft Structure, with the bearings end not in contact with the material.
2. The gap between the agitator blades and the container wall is very small to prevent material adhesion.
3. A standardized agitator drive box ensures stable equipment operation and reduces maintenance costs.
4. Easy-Cleaning: Designed for quick and thorough cleaning between batches;
5. Durable Construction: Built with robust materials for long-term reliability;
6. Wide Application: Used across industries such as pharmaceuticals, food processing, chemicals, and cosmetics.
Technical Parameters

Product Model	RPM-0.3	RPM-0.5	RPM-1	RPM-2	RPM-3	RPM-4	RPM-6	RPM-8	RPM-10	RPM-15
Effective Volume (m3)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	4.8	6	9
Maximum Batch Output (kg)	200	300	600	1200	1800	2500	3600	4800	6000	9000
Rotation Speed (r/min)	130	130	85	63	63	42	42	27	33	28
Drive Power (kW)	5.5	7.5	11	15	22	30	45	37	75	90
Equipment Weight (kg)	550	800	1000	1800	2500	3500	4200	4500	5800	7000
Length	2200	2700	3200	4100	4350	4700	5400	5530	5600	6000
Width	900	980	1000	1250	1450	1500	1700	1560	2500	2800
Height	900	1200	1350	1600	1800	1950	2300	2200	2900	3000

Product Display
Product Structure
Application
The Double Cone Mixer can be used in industries such as powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
About Our Company
Shijiazhuang Rongxin Technology Co., Ltd.
was founded in 2007, with its headquarters located in Shijiazhuang, the capital city of Hebei Province. Specializing in the design and equipment provision of material handling automation system, our company has garnered recognition as a leader in the field, securing numerous patents and accolades, including "National High-Tech Enterprise" and "Innovative Enterprise."
Currently, our company's main products include dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems, all of which are widely used in the metal materials industry, food processing industry, chemical industry, pharmaceutical industry, and new energy industry. Additionally, we operate our own production facility with mature manufacturing lines, guaranteeing the quality of our equipment.
