Pontoons for Famous Brand Excavator Working in Swamp

Product Description

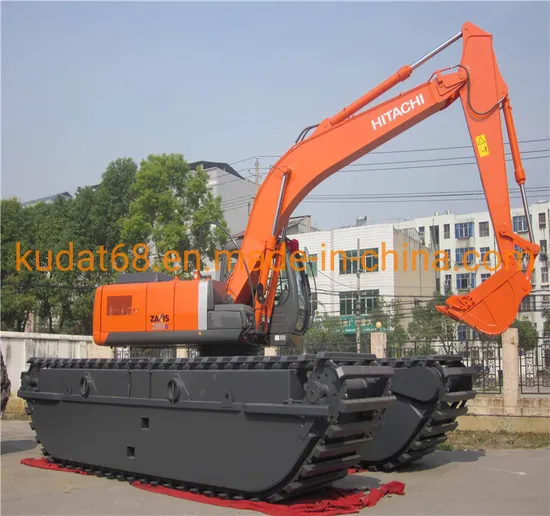

KUDAT standard amphibious excavator undercarriage pontoons including two pieces of pontoons (left &right), one mounting frame and two pieces of connection beams. These standard pontoons can be connected with any type of upper structure,such as Caterpillar, Hitachi, Komatsu, Kobelco, SANY...etc. And all they are only suitable to work on shallow water of depth less than 1.5 meters.
Technical specification of KUDAT standard pontoons:

Model	KUDAT80PB	KUDAT150PB	KUDAT200PB	KUDAT210P	KUDAT240P	KUDAT240FBP	KUDAT330PB
Matched Excavator class (tons)	6-8	10-13	15-20	18-22	23-26	23-26	30-36
A.Length (mm)	5459	7004	7531	8664	9744	10134	10656
B.Width (mm)	1300	1300	1420	1810	1810	1700	1810
C.Height (mm)	1643	1643	1885	1735	1735	1800	1735
D.Overall width(mm)	4235	4235	4355	5795	5795	6099	5795
Chains system	2 Chains	2 Chains	2 Chains	3 Chains	3 Chains	3 Chains	3 Chains
Travel motor brand and model	Two Doosan TM22VC	Two Doosan TM40VC	Two Doosan TM40VC	Two Doosan TM60VC	Two Doosan TM70VC	Two Doosan TM70VC	Four Doosan TM40VC
Total weight (kgs)	9400	10100	13200	20300	22800	22300	26800

Optional design of the undercarriage pontoons
Side pontoons and spuds: designed for deep water of depth 2m-5m
The side pontoons and spuds can be selected to install at side of main pontoons in order to work on deep water from 2 meters to 5 meters. Spuds length is designed according to the depth of water.
The spuds move up and down by driving motor and lay down by cylinders. There are two types: full-automatic type and semi-automatic type.
Extendable and retracted pontoons: designed for complete transportation without dis-assembly or narrow working place.
The width of the undercarriage pontoons can be flexible from 4.3m to 5.3m by hydraulic cylinder or mechanically by buckets.

---
