Product Details
Product Description
Product Description

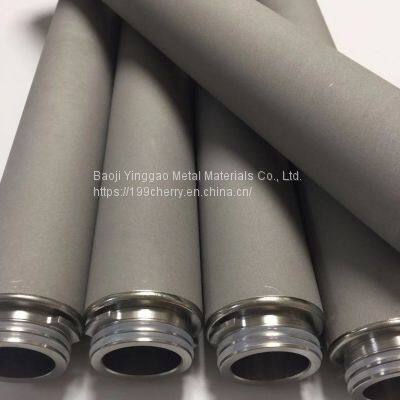

The porous sintered titanium filter is made of high-quality 0A grade high purity sponge titanium as raw material by pressing and high-temperature vacuum sintering.
Compared with the traditional filtration materials such as paper, cotton, PP, PE, PES, PTFE, etc., the metal powder sintered porous materials have good permeability, pore size and pore control, stable shape, high filtration accuracy, wear resistance, good mechanical properties, good heat conduction, heat resistance and heat dissipation, and can be repeatedly washed and used for many times.
Parameters
Material: Pure titanium
Size: OD20-80*WT2.5-3.0*L10-1200mm
Filter accuracy: 0.22-100μm
Porosity:20-40%
Penetrability: 3-800m³/㎡hkpa
Compression strength: 2-3Mpa
Temperature toleration: 250℃
Max working pressure: 0.6Mpa
Connection: Customized according to customer requirements
Features
1. Offers high corrosion resistance
2. Cleanable/Back washable
3. Allows for re-use
4. Maximum economy
5. High-Temperature Sintering
6. No media migration
7. Various gasket/O-Ring materials and configurations
8. Easily retrofits most systems
Application
It can be widely used in the electronic industry,water treatment industry, food industry, biotechnology, chemical industry, petrochemical industry, metallurgical industry and gas purification,is a new filter with broad development prospects.
1) Sparging
2) Separation and filtration
3) Carbonisation
4) Liquid filtration
5) Catalyst recovery
6) Steam filtration
7) Slurry oil filtration
8) Flame arrestors
9) Silencing
10) Fluid distribution and control
11) Semiconductor industry
12) Fuel cell stack
13) Coating electrode
14) Damping
15) Heat exchange
16) Bio-implants
>>
