US$30,000.00-70,000.00
|
1 Set
(MOQ)
|
Basic Info.
Plastic Processed
PE,CPE,TPE
Product Type
Extrusion Molding Machine
Assembly Structure
Separate Type Extruder
Engagement System
Non-Intermeshing
Screw Channel Structure
Non Deep Screw
Computerized
Computerized
Transport Package
Wooden Case, Stretch Film Wrapped
Specification
9.0*3.5*2.5
Origin
Ruian Zhejiang China
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description

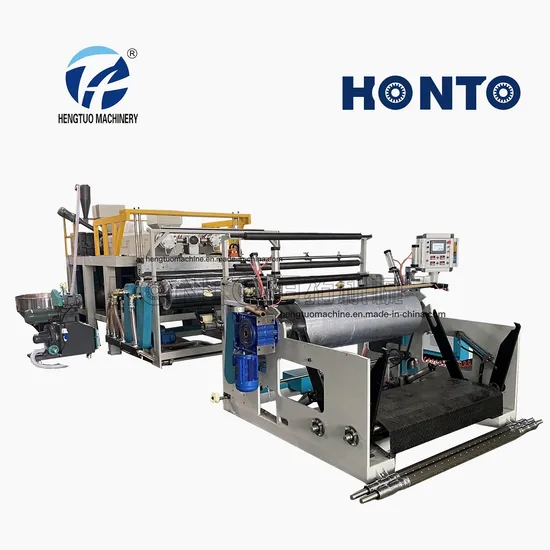

HT-1000/1500 stretch film extrusion line,
cast film making machine,
cling film making machine
What is the details of our Stretch Film Extruding Machine
1. To ensure good plasticization and high quality and high output, special mixing refining design is adopted in the machine's alloy screw which consists of import static state mixer.
2. The bi-directional loop design and helix runner inside cooling steel roller are adopted to stable the temperature on the surface of the roller.
3. The machine is easy to test and adjust the thickness of film, the Slitter could be changed without stopping the machine.
4. The winding system applys air knife online device, which can automatically cut the film in different width quickly.
Main Technical Variables
| Item/Model | 1400mm |
| Screw diameter(mm) | 90/70 |
| L/D ratio of screw (L/D) | 32:1 |
| width of die head (mm) | 1650 |
| Width of finished products(mm) | 1400 |
| Thickness of finished products (mm) | 0.01-0.1 |
| Structure of film layers | A/B |
| Max output (kg/h) | 100-150 |
| Linear speed of machinery (m/min) | 100 |
| Total power (KW) | 120 |
| Overall dimensions (L*W*H)m | 8*2*3 |
| Weight (T)(About) | 6 |
Company Information
RUIAN HENGTUO MACHINERY CO.,LTD. located in Ruian City, Zhejiang Province,China.is an innovative enterprise which integrates packaging machinery with professional scientific research and development, design and manufacturer, sales and after-sales service.
Main products: Three layer co extrusion stretch film making machine, Double extruder stretch film making machine, single extruder stretch film making machine, bubble film making machine, compound bubble film making machine, film blowing machine, printing machine, bag making machine etc.
Our Services
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use your film blowing equipment systems properly. It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
>>
