US$690.00
1,000-4,999 Pieces
Basic Info.
Support Network
5150-5300MHz 100W
Information content
Interference Signal
Transport Package
Five Layer K Paper Custom Tray
Specification
170mm*94mm*26.5mm
Production Capacity
10000/Month
Product Description

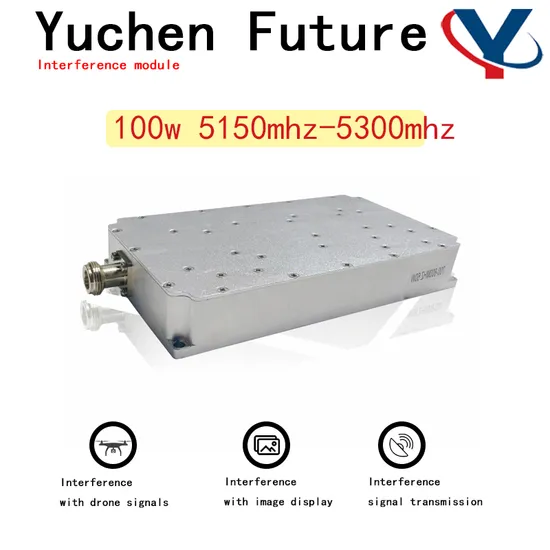

Power Amplifier Customized Frequency 5150-5300MHz 100W RF Module Anti Drone Module
At present, the vigorous development of low altitude economy both domestically and internationally has led to more frequent use of unmanned aerial vehicle (UAV) equipment, which has begun to play a role in various fields of society. At the same time, the hazards caused by various UAVs have also frequently emerged. Maintaining the information security and personal safety of oneself and enterprises has become an indispensable part. Our company's products use wireless electromagnetic wave interference for protection, and the interference and protection effects are far and stable. We have our own R&D team to update equipment, as well as our own production department to collaborate on production, packaging, and shipping. The two work together to help develop better interference equipment services for everyone.
100W Interference Power Amplifier Technical Data Sheet Radio Frequency Index
| Test item | Technical parameters | Unit | Remark |
| Frequency Range | 400M-6G | MHz | Customized Frequency |
| Operating Voltage | 28 | V | 28-32V |
| Maximum Power Output | 50±0.5 | dBm | 100W@≤7A |
| Gain | 45±1 | dB | peak-to-peak value |
| In-band fluctuation | ≤2 | dB | peak-to-peak value |
Spurious Emission | Operating In-band | ≤-15dBm/1MHz | dBm | Center Frequency add CW Signal to Maximum Power Output Test |
| | Operating Out-of-band | 9KHz~1GHz | No noise wave above normal base | dBm | |
| | | 1G~12.75GHz | | dBm | |
| Output VSWR | ≤1.30 | | No power up:Standard Grid Output -10dBm |
| | ≤1.30 | | Power up:Dual Directional Coupler Test |
| high-low temperature test | Operating Ambient Temperature | -10~+55 | ºC | Cold Start |
| | Gain Stability | ±1.5 @-40ºC~+55ºC | dB | |
| | Power Stability | ±1 @-40ºC~+55ºC | dB | |
| Power Supply Requirement | ≥8A@+28Vdc; | | Continuous Wave Output 100W |
| Power Supply Port | Power Cable:Red positive Black negative | | Red positive Black negative |
| RF Output Connector | SMA | | SMA External Screw Base |
| Warming | Temperature,VSWR,Under Voltage/Power,Over Current |
Appearance
Frequency (MHZ) | Power (dBm) | Current (A) | Voltage (V) | Dimensions(mm) | Weight (kg) |
| 400-500 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 500-600 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 600-700 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 720-830 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 830-930 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 930-1030 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 1170-1280 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 1550-1620 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 2400-2500 | 50±1 | ≤7 | 32-36 | 94*170*27 | 0.8 |
| 5100-5300 | 50±1 | ≤10 | 32-36 | 94*170*27 | 0.8 |
| 5700-5900 | 50±1 | ≤10 | 32-36 | 94*170*27 | 0.8 |
Are we a factory or a trading company?
Answer: We are a factory located in Longgang District, Shenzhen. Welcome to come and visit us.
What is our delivery deadline?
Answer: All products start production after placing an order and are delivered within 5-10 working days. For bulk purchases (with different delivery times during low and peak seasons), please contact us for more information.
What is our payment method?
Answer: T / T, western union, PayPal, Credit cards, etc., please contact us for details.
What is our mode of transportation?
Answer: There will be methods such as land transportation, sea transportation, and air transportation. Excellent freight forwarder, accurate and fast.
How can you establish a long-term and good relationship with our business?
Answer: We maintain good quality and competitive prices to ensure that our customers benefit
We respect every customer, just like our friends, and sincerely do business and make friends with them, no matter where they come from.
What if our product has defects?
Answer: We strictly ensure our quality and factory standards, but there may be damage during logistics transportation. If there is a problem, please take photos or videos and contact us as soon as possible, so that we only know where the problem is, to ensure subsequent repairs and parts delivery.
>>
