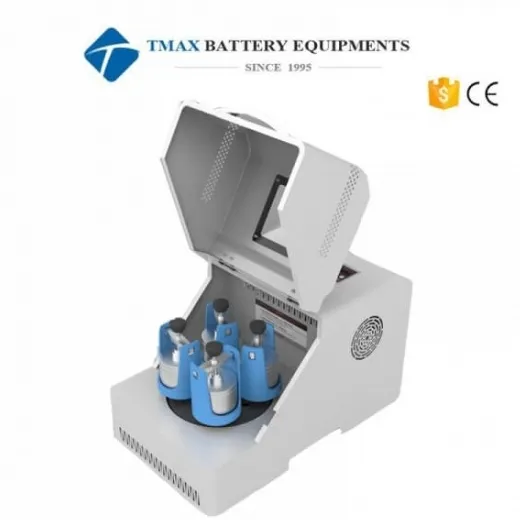

0.4L Ultrafine Grinding Vertical Planetary Ball Mill Grinder
| Optimal for material type: | medium-hard, soft, brittle, tough, moist |
| Item No.: | TMAX-FCS-03 |
| Max. feed size (depends on material): | 10mm |
| Final fineness (depends on material): | <100nm |
| Min. sample quantity: | 10ml |
| Max. sample quantity: | 180ml |
| Rotational speed (disk): | 50-450r/min |
| Rotational speed (jars): | 100-900r/min |
| Transmission ratio (disk / jars): | 1:-2 |
| Transmission standard: | CE |
| Grinding modes: | 16 modes programmable |
| Grinding tools: | grinding jars and grinding balls |
| Bi-direction grinding: | yes |
| Continuously grinding | 00:01:00 - 99:59:59 |
| Paused interval: | 00:01:00 - 99:59:59 |
| Emergency stop: | yes |
| Power off memory: | yes |
| Overload protection | Yes |
| Milling chamber lighting: | automatic LED lighting, 220V, 18W |
| Number of milling samples: | 4 simultaneously |
| Materials of the grinding jars: | SS304, SS316, nylon, PTFE, agate, zirconia, alumina, PU, WC |
| Number of working stations: | 4 |
| Ball mill type: | vertical |
| Compatible grinding jars: | 25ml / 50ml / 100ml |
| Materials of milling balls: | SS, agate, zirconia, alumina, nylon, PTFE |
| Grinding ball diameter: | 3/5/10/15/20mm |
| Compatibal ball weight | 40-200g |
| Grinding process: | dry /wet grinding |
| Vacuum grinding: | yes |
| Low temperature grinding: | yes |
| Grinding in inert gas: | yes |
| Temperature detection: | yes ( special accessories) |
| Pressure detection: | yes ( special accessories) |
| Electrical details: | 100-120V/200-240V AC ,50-60Hz, 250W |
| Plug types: | GB/EU/US/UK standard |
| Net weight: | 35kg |
| Dimensions (W x D x H): | 500*300*350mm |
| Noise level: | 50dB |
| IP rank: | IP60 |
| Product standard: | CE |
| Patent: | design patent/ noise improve patent |
| Accessories: | user manual, warranty card |
| Material | Main component | Density (g/cm3) | Abrasion resistance | Use for material to be ground |
| Agate | SiO2 | 2.65 | Good | Soft to medium-hard samples |
| Sintered corundum | Al2O3 | 3.8 | Fairly good | Medium-hard, fibrous samples |
| Silicon nitride | Si3N4 | 3.25 | Excellent | Abrasive samples, iron-free milling |
| Zirconium oxide | ZrO2 | 5.7 | Very good | Fibrous, abrasive samples |
| Stainless steel | Fe -Cr -Ni | 7.8 | Fairly good | Medium-hard, brittle samples |
| Tempered steel | Fe -Cr | 7.65 | Good | Hard, brittle samples |
| Tungsten carbide | WC | 14.95 | Very good | Hard, abrasive samples |
| Polypropylene disposable jar | MC/PA/PTFE/PU/HDPE/PP | ** | Good | For homogenisation |
