X6325 Precision Metal Vertical Milling Machine Universal Turret Milling Machine

Product Description

X6325 Precision Metal Vertical Milling Machine Universal Turret Milling Machine

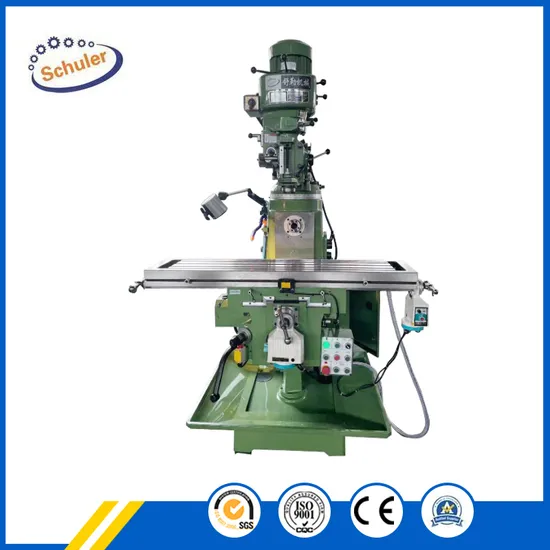

Product picture:
The main performance characteristics:
Performance: X6325 - Rectangular guideways on Y, Z axes with good rigidity,
X6323A - Dovetail guideways on Y, Z axes,
X6325B - Rectangular guideway on Y axis, and dovetail guideway on Z axis,
Hardened and ground table surface and guideways with precision ground,
Milling head adopts 3HP motor, 16 steps speed pulley head, variable speed head is optional.
Product main technical specifications:

Model	X6325	X6325A	X6325B
Table size	254×1270 (10"×50") 254×1370 (10"×54")
Table longitudinal travel	850mm 950mm
Cross travel	420mm	400mm	400mm
Vertical travel	420mm
T-slot Number/Width	3-16mm
Ram travel	470mm
Distance from spindle nose to table surface	0~405mm
Distance from spindle center to column	140~609mm
Spindle taper	standard: R8, optional: ISO30 / ISO40
Spindle travel	127mm
Spindle speed	50HZ: 65~4500rpm, 60HZ: 80~5440rpm
	optional: variable 65~4200rpm
Spindle feed	0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" ) mm/revolution
Spindle motor power	2.25KW / 3PH
Head swivel	90°
Head tilting	45°
one miller per case	1816×1550×2080mm
two miller per case	1850×1750×2170mm
three miller per case	1850×2285×2235mm
Machine weight	1550kg	1380kg	1420kg

Details Pictures :
Turret Milling Machine in Workshop:
Turret Milling Machine Packaging Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location. FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
9.Q: How about your machine quality?We are worry about the quality.
---->A: Shandong Schuler Heavy Machinery Co.,Ltd focused on cnc lathe machines for up to 10 years, is China's mature brand. We "quality of survival" management philosophy, theNew Mini Hobby CNC Lathe Brand Machining Prices CK6140 has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
