Product Description
Product Description

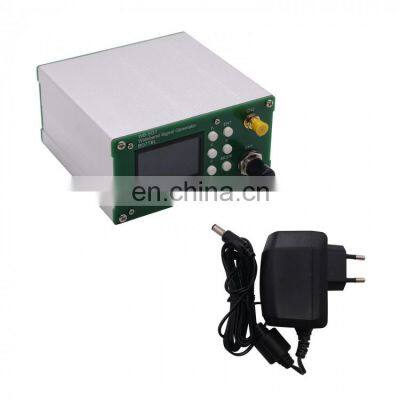

WB-SG1 1Hz-8GHz Wideband Signal Generator with Make-Break Modulation + Power Adapter Product Description Features:- 1Hz-8GHz output with make-break modulation and built-in OCXO- Can be connected to external reference- CH1 Frequency Range: 1Hz-200MHz- CH1 Stepped Frequency: 1Hz-19.999999MHz/1Hz, 20MHz-200MHz/10Hz- CH1 Output Amplitude: 3.3Vpp- CH1 Interface Type: BNC- CH2 Frequency Range: 35MHz-8GHz- CH2 Stepped Frequency: 35MHz-4G/0.5KHz, 4G-8G/1KHz- CH2 Modulation: ON/OFF (Make-Break) Modulation; Modulation Frequency 1Hz-1MHz; Stepped Frequency 1Hz- CH2 Output Impedance: 50 ohm- CH2 Interface Type: SMA- Internal Reference Frequency: 10MHz- Internal Reference Type: OCXO- Internal Reference Aging: 0.5Hz/year- 10M Reference Output Power: 5dBm- External Reference Input Power Range: 0dBm to +20dBm- Operating Modes: CH1 Point Frequency Mode, CH2 Point Frequency Mode, CH1 Frequency Sweep Mode & CH2 Frequency Sweep ModeFront Panel:- MODE: Switch Operation Modes- ENT: Input Data- <>^V: Left/Right/Up/Down Buttons- CH1: Channel 1 Output- CH2: Channel 2 OutputRear Panel:- 10M REF INPUT: External 10M Reference Input- 10M REF OUTPU: 10M Reference Output- USB: USB Port- STD ADJ: Internal OCXO Frequency Fine Tuning- Power Switch- DC Socket- Power Supply: 11.7-12.5V; Start: <0.5A; Stability: <0.25A- Weight: 350gPackage Included:- 1 x Signal Generator- 1 x DC12V Power Adapter Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, the order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have an alibaba paying link. Q5. After paid, what info of the supplier provided?A: Tracking number. Q6: Do you offer a guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take responsibility for Man-made damage or improper operation. Delivery damage will be negotiated. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel has the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city airport.4. By Sea: Delivery from the Shenzhen seaport . Company Information Company informationTZT has been specializing in Business & Industry, Hobbies & Toys,CNC Products and Health care supplies for over 5 years. We committed to enhancing customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quality products and great service for buyer,we are strict on product quality control and offer instant communication service. Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
