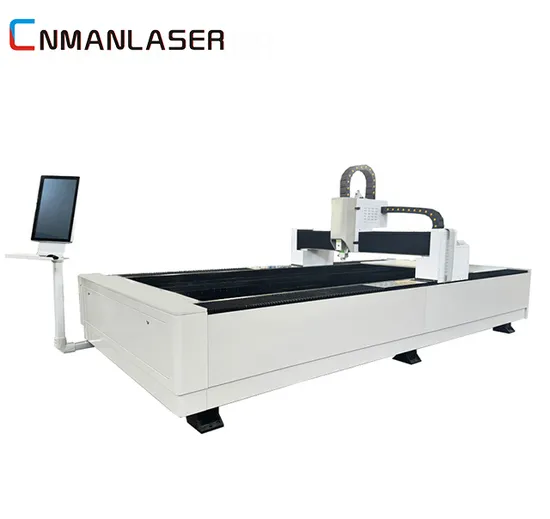

1.5kw 2kw 3kw 6kw 2000W / 3000W / 6000W CNC Fiber Laser Cutting Machine for Pipe / Tube Laser Cutter Stainless Steel / Carbon Steel / Aluminum Metal

Product Description

Fiber laser cutting machine uses fiber to cut metal plate , such as mild steel , stainless steel ,galvanized steel , aluminum, copper and brass . It consist of machine tool, motion parts, electrical control parts, and other assist parts. Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission
High-rigidity heavy chassis, reducing the vibration generated during high-speed cutting greatly.
Gantry double-drive structure, with imported German rack & pinion transmission system, improves the production efficiency.
High-performance cast aluminum guide rail, after finite element analysis, realizes highly accelerated speed circular arc cutting.
Open worktable, simple operation and small space occupation.

Laser cutting machines are mainly used in the sheet metal industry, automotive factories, sheet metal processing plants, and engineering machinery. Due to technological limitations, the steel plates cut by laser cutting are currently relatively thin, but the accuracy of laser cutting is high and the cutting surface is also good. Generally, finished products are used for processing at once. In the future, with the development of technology, the cutting power of laser cutting will be increasing, and it will involve a wider range of industries, including shipbuilding. Laser cutting machines are used in computer cabinets, household appliances, kitchenware, lighting fixtures, electronic and electrical products, hardware products, instruments and meters Precision machinery, steel structures, elevator manufacturing, advertising, art, packaging, environmental protection equipment and other mechanical manufacturing and processing industries.

Product Features
1.Can cut various hardness materials 2.the cutting surface is smoothand free of burrs
3.Variety of machinable graphics
4.Adopt parallel exchange platform
Advantage
Compared with other thermal cutting methods, laser cutting has faster cutting speed and higher quality
1. Good cutting quality
2. Advantages of High Cutting Efficiency Beifu Laser Cutting System
3. Fast cutting speed laser cutting machine button instructions
4. Characteristics and applicability of non-contact laser cutting
5. There are various types of cutting materials

Imported Component PartsEquipped with imported servo motor ,reducer , rack , quide rail and highprecision transmission system to chieveahigh standard machining accuracyensure long-term usage

Open Bed Design For Cutting PlatformIt is able to load material on front, left and right sideflexibly and conveniently.Compact size and small footprint to start sheet metalcutting anywhere, anytime

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.

Model NO.	MAN-F3015
Laser Classification	Solid Laser
Product Name	Fiber Laser Cutting Machine
Transport Package	Wood Package
Origin	Shandong
Production Capacity	40set/Month
Structure Type	Desktop
Laser Technology	Laser Fusion Cutting
Cutting Material	Metal,Carbon Steel , Stainless Steel,aluminium,copper
Trademark	CNMANLASER
HS Code	8456110090
Maximum working area	1500*3000mm ( optional),4000*2000mm,6000*2000mm
Cutting thickness	1-8mm stainless steel/ 1-18mm mild steel/1-8mmAluminum piate/1-6mm Brass(Nitogen)
Transmission mode	Imported square rail and helical gear
Positioning accuracy of X/Y axis	±0.01 mm
Repositioning accuracy of X/Y axis	±0.02 mm
Package size	5600*2250*2200mm
Cooling Way	Water cooling
System	Fscut2000C

Shandong Man Machinery Equipment Co., Ltd. is an integrated enterprise which specializes in Laser products \Laser engraving machine \Laser cutting machine and Laser marking machine manufacturer and process\ international sales and domestic sales. All these equipments have been widely used in the production of electronic appliances, integrated circuits, telecommunication equipments, computers, auto parts, glass and optical units, construction materials, medical devices, jewelries, packaging materials, crafts, fashion and clothing, urban illumination and other fields. The company was founded in 2008. As a modernized enterprise with high technology and self-management export, we are of solid financial base and great capability for production, research and development.
Quality assurance and after-sales service:
1) The quality assurance period is 12 months from the date of arrival of the goods at the destination port. Except for human damage and damage to the laser Krypton lamp, we are responsible for providing free accessories during the warranty period. Please send the damaged parts to us by express delivery at your own expense before we return the replacement parts. After the warranty period, reasonable fees will be charged for any parts that require repair or replacement.
2) When users encounter installation, operation, adjustment, maintenance and other issues, we will provide technical guidance through email, fax, phone, and other means.
3) We provide technical support to ensure safe user use and maintenance:
We support ship by air and sea.
Will pack laser welding machine with foam and dust film first, then pack it with woodon box.
FAQ:
Q: Payment terms?
A:TT/West Union/Payple/LC/Cash and so on.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to many countries around the world. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

---
