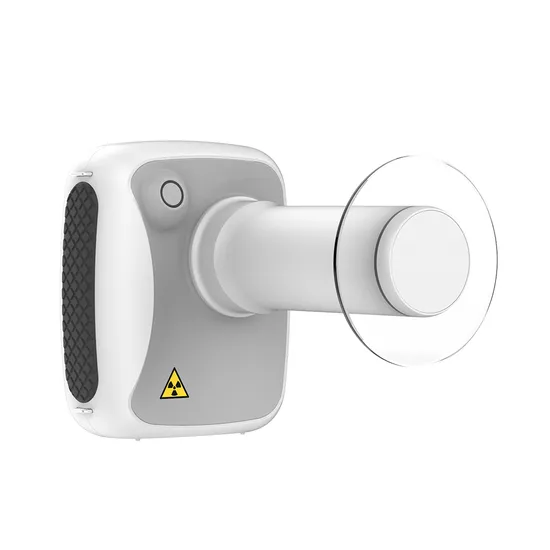

2024 New Style Medical Machine Plastic Portable Dental X Ray Machine for Dental Clinic

Product Description

Product Description

RV-360R Parameter table
Machine parameters:
Maximum output power loading factor combination	60kV,2mA
Maximum loading factor combination	60kV,2mA,2s
Nominal electrical power	0.12kW(60kV,2mA,0.1s)
Inverter frequency of the High voltage generator	100kHz
Tube voltage	60kV
Tube current	2mA
Adjustment range of the loading time	0.01~2s (Segmented adjustment)
battery	DC 24.0V,950mAh, ± 10%
Charger input	single-phase AC 100~240V,1.3A, ± 10%
Charger output	DC 25.2V,1.0A
Supply Frequency	50/60Hz, ± 1Hz
Internal resistance of power supply	2 Ω
Distance of the Focal point to skin	20.5cm±0.5cm
X-ray field size at the end of beam limiting tube	round, Φ 5.7cm±0.3cm
Total filtration of X-ray tube assembly	1.75mm Al
Additional filtration	1.0mm Al
X-ray tube model	XD10D-0.5 / 70
Leakage radiation	≤0.25mGy/h
Running mode	Discontinuous operation
Ray tube parameters
Target material	Tungsten
Anode angle of the X-ray tube	19º
Nominal value of the focal point	0.8mm
Filament current	2A
Filament voltage	2.85±0.5
Maximum working tube voltage	70Kv
Continuous power	31W
Maximum short-term power	0.5KW
X-ray exposure rate	0.28mc/kg.s,min
Intrinsic filtration of X-ray tube assembly	0.75mm Al

Company Profile

Packing:

Carton Box

Delivery: According to the dimension and weight of the package, we can provide different transportation plan: By DHL, FEDEX, TNT, EMS, UPS, takes 3-5 days arrive; By airplane to airport, takes 4-6 day arrive; By ship to denstination port, takes 15-45 days arrive. Note: The time mentioned is just for reference. It's different with each country. If the weight is very heavy, please contact me first,and I will check with our production line and inform.

FAQ 1.How long is your product warranty period?
A:All of our products have 1 years warranty and aftersales service,Especially LED curing light with 2 years warranty
2.What is the minimum order?
A: No minimum order quantities request,all is welcome.But more order,more cheaper.
3.What payment methods your company accept ?
A: Bank T/T , Western union,Money Gram,Alipay,
4.Q:what's the delivery time?
A: Well ,it depends on the quantity of your order .Usually delivery in 3-7 days
5.Q:Can I get your samples first?
A : Yes ,samples order is welcome , however we will charge samples cost first, which will be return in your mass order.
6.Why choose us?
-Sincerely service, Confidence guaranty, Successful cooperation;
-Manufacturer and trading integrated, covering with various kinds of dental products;
-Good quality products with ISO & CE approved;
-Competive and resonable price;
-Specific warranty.

---
