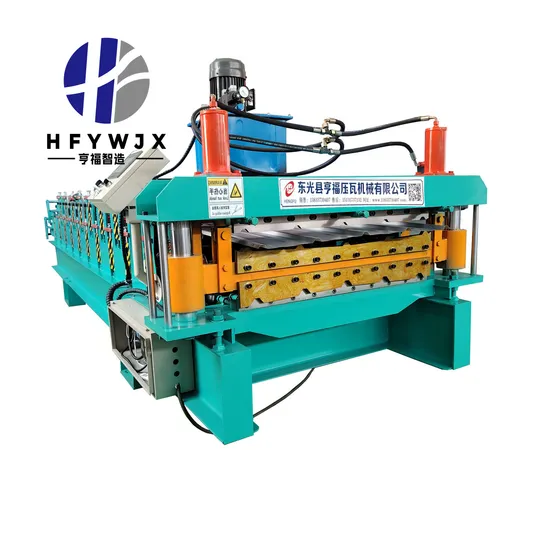

1000mm Double Layer Roll Forming Roof Wall Tile Making Machines Roof Roll Forming Machine

Product Description

Basic Info.

Model NO	Double layer roll forming machine
Condition	New
Usage	Roof
External dimensions	6500mmx1300mmx1200mm
machine frame	300H steel frame
Number of rolling mill sets	13-11 row molding
Roll material	45 # steel rough lathe fine lathe outer circle grinding and electroplating treatment during addition
Spindle material	45 steel
Spindle diameter	Φ70mm(Solid shaft)
Type of Driven	Chain drive
Forming Speed	0-35M/min
Main motor power	7.5KW
Electric control system	PLC
Customized	Customized
Origin	Cangzhou, Hebei
Warranty	1 year

Product Description
Double Layer Roll Forming Machine combines two models very well, with reasonable structure and beautiful appearance. It has the characteristics of saving space and simple operation, and is especially suitable for customers with small sites and on-site construction.
Double Layer Roll Forming Machine is mainly composed of a feed introduction platform, a forming host, a forming and shearing device, a hydraulic station, and a computer control system. The operation of switching between upper and lower floors is simple. You only need to use the conversion button on the electric control cabinet to control each floor separately. The power can also be controlled through the clutch to control each floor separately. Optional configurations include ordinary unloading machine and hydraulic unloading machine. The models of the upper and lower floors are determined according to customer requirements.

Raw materials	Galvanized steel plate, color steel plate
Machine frame	300H steel frame
Pull rod	35mm galvanized

Processing Flow:
Detailed Photos

1. Number of rolling mill units: 13-11 rows for forming
2. Roll material: 45 # steel rough lathe fine lathe outer circle grinding and electroplating treatment during addition
3. Spindle diameter: Φ 70mm
4. Spindle material: 45 steel
5. Cutting: Cut off after molding, guide column cutting
Company Profile

Hebei Hengfu Roll Forming Machine Co., Ltd. is a professional manufacturer of cold-bending forming equipment and its complete set of automated production lines. With advanced production equipment and product development and design capabilities, the products are at the leading level in the industry with the advantages of high rate, high precision, high flexibility, and low processing loss, and the products are favored by industry customers.
Our company's main products include: color steel plate equipment, glazed tile equipment, floor decking equipment, CIZ steel forming equipment, composite sandwich panel assembly line equipment, car compartment panels, dust removal anode plates and other equipment. We can design and manufacture special models according to user requirements, provide users with technical guidance, production installation, commissioning, and after-sales one-stop service.
In recent years, a large number of products have been sold to more than 50 countries and regions including Russia, India, the United Kingdom, Australia, Kazakhstan, etc., and have been well received by customers at home and abroad.
Certifications:
Company:
Workshop:
Customer & EXPO:
Transaction transportation:
FAQ

Q1: Are you a trading company or a factory?
A1: We are a manufacturer located in Cangzhou, Hebei. We have our own Having their own product design team. Welcome to visit our factory and inspect the quality of our machines on-site
Q2. Do you have after-sales support?
A2: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. What will you do if the machine is broken?
A4: We provide 12 months free warranty and free technical support for the whole life of any machine.If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the equipment.
Q5: Can you finish the machine during the delivery time?
A5: We will finish the machine in time according to determined lead time.

---
