US$500.00-1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
SB105/125/145/165
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Mountain Machinery
Operation
Soil Preparation Machinery, Fixed Operation
Arbor Configuration
Horizontal Axis
Transport Package
Iron Pallet or Wooden Package
Specification
CE, ISO9001
Production Capacity
3000PCS/Year
Product Description

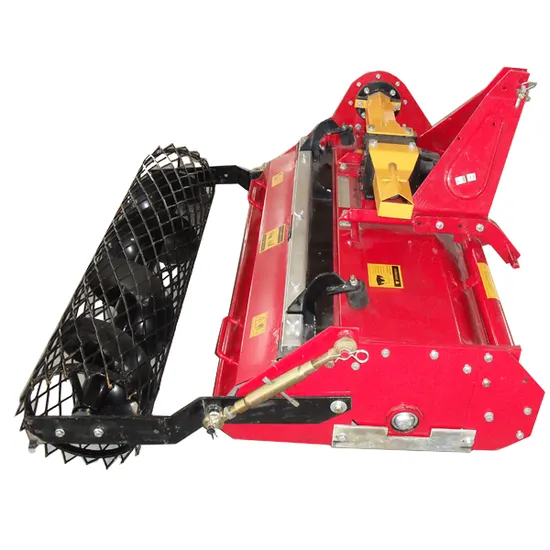

1. Suitable For Working In Orchards And For Gardening
2. Model: SB Series
3. Sturdy Cast-iron Gearbox, Side Skids, Side Chain Drive, Automatic Tensioner, Cage Roller, Cat. I and II Universal Three-point Hitch, EC Safety Guards. The Shift (120 mm) Of The Three-point Hitch Is Mechanical And Manual And Does Not Require The Use Of Levers
4. Change Color Upon Request
5. With CE Certification
6. Suitable For The 4 Wheel Tractors
7. Change Color Upon Request
8. Rotary Cultivator Produces Have IGN, LTL, TL Series And So On
9. High Welding Processes And Surface Quality
10. Low Shock And Noise
| Model | SB105 | SB125 | SB145 | SB165 |
| Dimensions(L*W*H) | 1160x1330x920mm | 1360x1330x920mm | 1560x1330x920mm | 1760x1330x920mm |
| Structure weight | 330kg | 355kg | 380kg | 405kg |
| Working width | 950mm | 1150mm | 1350mm | 1550mm |
| Working depth | 120mm | 120mm | 120mm | 120mm |
| Working efficiency | 1500-2000 mm/h | 1800-2400 mm/h | 2100-2800 mm/h | 2400-3200 mm/h |
| PTO turning speed | 540r/min | 540r/min | 540r/min | 540r/min |
| PTO spline | 6x8x700mm | 6x8x700mm | 6x8x700mm | 6x8x700mm |
| Power required | 20-28hp | 25-30hp | 28-40hp | 35-45hp |
>>
