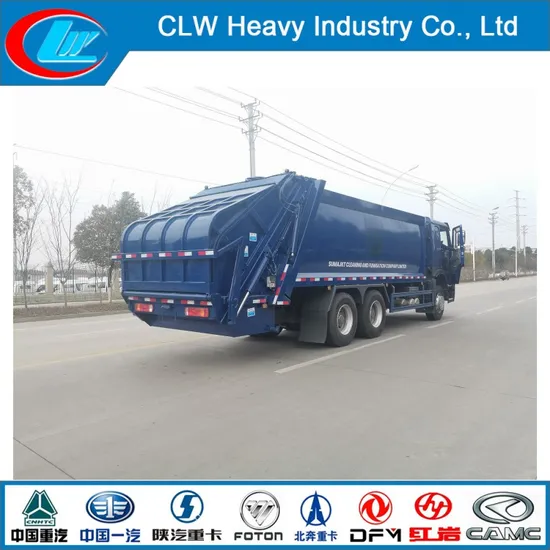

LHD Rhd Sinotruk HOWO Compressed Refuese Garbage Truck 6X4 Garbage Compactor Truck for Africa

Product Description

LHD RHD SINOTRUK HOWO Compressed Refuese Garbage Truck 6X4 Garbage Compactor Truck for Africa

Complete vehicle
Chassis Model	ZZ1257M SINOTRUK HOWO
Drive type	6X4
Wheel base(mm)	4325+1350
Overall dimension(mm)	9850x2500×3330
Curb weight(Kg)	15440
Max.vehicle speed(km/h)	102
Cab	HW76(Flat roof,one and half rows cabin,luxury sedan configuration,A/C provided)
Engine	Model	WD615.47
	Max.output (kw/HP)	273/371
	Max.torque (N•m)	1500 @1100~1600 rpm
	Displacement (ml)	9726
	Emission standard	Euro 2
Gear box	HW 19710CL, 10 forward gears &2 reverse gears
Driving axle	HC16
Front axle	HR9
Steering gear	Germany ZF8098
Chassis suspension	NS-07 new stabilizing suspension
Quantity of leaf spring	10/12
Air intake system	Double pipe cyclone air duct+Oil air filter+Common air filter
Inner trimming
Standard configuration	Air suspension seat
	Seat heater (opting)
	Lumbar support to the driver
	Adjustable steering wheel
	Sun roof (opting)
Electrical system
Standard configuration	PLC electronic control system Same time with manual control in the emergency.
	New battery box
	Start/stop device under the vehicle
Safety
Standard configuration	Three points safety belt
	Automatic clearance adjustment arm,Tachometer
Comfortable accessories
Cab four points full floating suspension	Front and rear coil spring
Standard configuration	Cab anti-rolling stabilizing device
	Hand accelerator
	Adjustable steering wheel
Others
Aluminum alloy fuel tank	Square-400L
Standard configuration	Big tool box
	Reinforced rim (with HQ mark)
	Three in one lock (ignition switch, door and fuel tank)
Type specification	295/80R22.5
Number of tires	10+1
Capacity of garbage box	18m3
Cycle time of filling	≤25s
Lifting time of filler	8~10s
Time of discharge	≤40s
Compression ratio	1/3~1/2
Type of garbage box	Hang two 240L standard dustbins at the same time (without dustbins) Hang one 1100L standard dustbin at the same time (without dustbins) Meet DIN EN 840 standard

Principle

Garbage compactor truck (also known as Refuse Compactor, Refuse Collection Vehicle/RCV) is a special type of urban environmental sanitation vehicle that collects and transports garbage, which can prevent secondary pollution caused by spilling along the road. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men (driver and operator) are required to perform the entire functionality of the compactor.

Application

It is mainly used to transport domestic garbage, but also can transport ash, sand, stone, soil and other bulk construction materials, ore or coal in mines or coal construction, widely applied to environmental sanitation, municipal administration, factories and mining enterprises, property communities, garbage concentrated residential areas.

Advantages

1. Simple, efficient garbage collection; 2. Automatic repeated compacting function with high compression ratio; 3. More garbage loading capacity; 4. Automatic operation;(labor saving) 5. Environmental-friendly; 6. High efficiency of vehicle utilization; 7. Decent sealing characteristics;

CLW Heavy Industry Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck/ Water Tank Truck/ Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Selfloading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer/ skeleton trailer/ dump semi trailer/ side wall trailer/ low bed trailer/ van container trailer/ warehouse trailer, etc.)
16. Spare parts/Accessory for above products
FAQ

1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q:How many years of your company's service, especially after-sale service?
A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q:Is there any advantages of your price?
A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.

6. Delivery time: 25 working days after payment is received.

7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.

---
