Product Details
Product Description
Product Description
explain

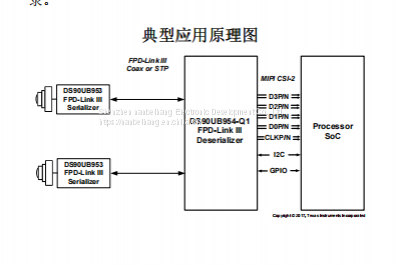

DS90UB954-Q1 is a multi-functional dual channel deserializer hub, which can receive serial sensor data from one or two independent sources through FPD-Link III interface. When used with DS90UB953-Q1 serializer, DS90UB954-Q1 receives data from imager, supports 2MP/60fps and 4MP/30fps cameras, satellite radar and other sensors (such as ToF and laser radar). The received data will be aggregated to the output that complies with MIPI CSI-2 standard and is interconnected with the downstream processor.
For sensors equipped with DS90UB933-Q1 and DS90UB913A-Q1 serializers, DS90UB954-Q1 operates from one or two sensors
(Including full HD 1080p 2MP 60/fps imager sensor) Receive and aggregate data. When configuring CSI-2 interface for 2-channel operation
Provide an identical MIPI CSI-2 clock channel to provide duplicate output. Replication mode creates two aggregated video stream copies for data
Recording and parallel processing.
The DS90UB954-Q1 and the accompanying DS90UB953-Q1 chipset meet AEC-Q100 standards and are designed to be used via a 50 Ω single ended coaxial cable or
100 Ω differential STP cable receives data. The deserializer hub is ideal for coaxial cable powered applications, and the receive equalizer automatically adapts to compensate
Cable loss characteristics (without additional programming), including cable aging over time.
Each FPD-Link III interface includes a separate low delay bidirectional control channel (BCC), which can continuously transmit I2C, GPIO and other control information. The GPIO signals used for sensor synchronization and diagnostic features also use BCCs.
characteristic
Meets AEC-Q100 standards for automotive applications
– Device temperature class 2: ambient operating temperature range from - 40 ℃ to+105 ℃
The dual deserializer hub can aggregate one or two active sensors through the FPD-Link III interface
PoC compatible transceivers
Comply with MIPI DPHY version 1.2/CSI-2 version 1.3 standard CSI-2 output port
– Support 1, 2, 3, 4 data channels
CSI-2 data rate is scalable: each data channel supports
400Mbps/800Mbps/1.5Gbps/1.6Gbps
– Programmable data types
Four virtual channels
– ECC and CRC generation
Ultra low data and control path latency
Support single ended coaxial or shielded twisted pair (STP) cables
Adaptive reception equalization
I2C with Fast Mode Plus (up to 1Mbps)
Flexible GPIO for camera synchronization and diagnostics
With DS90UB935-Q1, DS90UB953-Q1
DS90UB933-Q1 and DS90UB913A-Q1 serializers are compatible
Line fault detection and advanced diagnosis
Comply with ISO 10605 and IEC 61000-4-2 ESD standards
application
•
Automobile ADAS
– Rear View Camera (RVC)
– Look Around System (SVS)
– Camera Monitoring System (CMS)
– Front view camera (FC)
– Driver Monitoring System (DMS)
– Satellite radar, time of flight (ToF) and lidar sensors
modular
Security and monitoring
Industrial and medical imaging
>>
