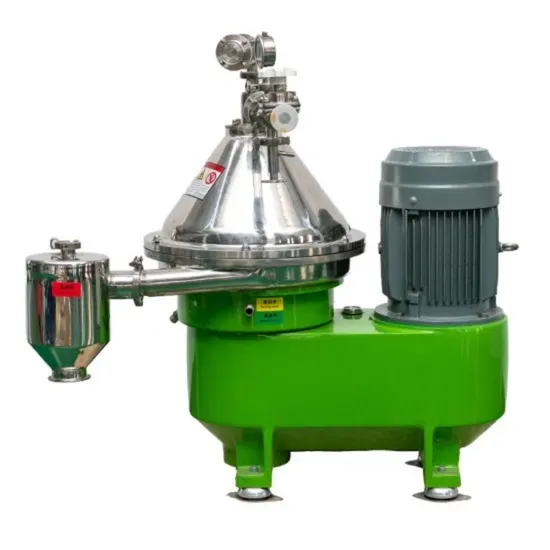

3-Phase Centrifugal Machine Disc Milk Separator Fat Separator Milk Cream Separator

US$9,800.00 1 set (MOQ)

Basic Info.

Model NO.
DHZ
Type
Centrifuge
Operating Type
Continuous Type
Centrifuge Type
Disc Centrifuge
Condition
New
Function
Liquid-Liquid,Liquid-Liquid-Solid Separation
Material
Stainless Steel
Structure
Vertical
Discharge
Automatic
Transport Package
Wooden Case
Specification
1000mm*920mm*1300mm
Trademark
Shenzhou
Origin
China

Product Description

Three Phase Coconut Water Disc Separator Centrifuge / Milk Skimming Equipment
Model DSN separator is mainly used for clarifying and defating of milk,It is also used for the similar oil to clarify the Liquid-Liquid-Solid three-phase materials ,it is also widely used in the coconut water to separate the fat and impurity.
Working principle: The bowl will be driven by the main motor by the friction clutch and screw gear pair to rotate highly around the mainshaft.Stock liquid flows from the center charging inlet on the top to the bottom through the charging pipe.And then passes through disc seats to the bowl's space.The bigger gravity solid phase particles in the stock liquid is settled down to the bowl's wall by the centrifugal force and then under the control of the side bowl drained out of the residue outlet but liquid phase is fully settled down to the bowl wall by the centrifugal force field and then under the control of the side bowl it is drained out of the residue outlet but liquid phase is fully settled down to the center along the discs to drain out by the centripetal pump. Applications: Milk separator machine is mainly used skim milk, whey protein isolate, butter, wheat shock shower, casein, cheese production, anhydrous butter centrifuge enrichment and other production processes for medium to large dairy industry enterprises. Equipment uses a closed structure, with milk contact parts made of stainless steel, in line with national food hygiene standards. Device according to user requirements, can also be used in the milk, milk residue, after condensation casein, the protein and whey protein isolate, and whey clarification and purification.
Specification
Model Capacity
(L/h)
Motor power
(Kw)
Discharging type Output pressure of clear liquid
(Mpa)

Net weight

(Kgs)

Overall dimension
L × W × H (mm)
PDSM1000-DN 1000 4 Part discharging ≤0.2 450 854 × 885 × 1118
PDSM3000-DN 3000 7.5 Variable capacity
discharging
614 1120 × 850 × 1082
PDSM5000-DN 5000 15 Part discharging ≤0.1 1000 1270 × 1188 × 1560
PDSM10000-DN 10000 18.5 Small valve
discharging
≤0.2 1250 1563 × 1382 × 1780
Liaoyang Shenzhou Machinery Equipment Co., Ltd. belongs to SHENZHOU Group.We mainly produce decanter centrifuges, Disc centrifuge,Tubular centrifuge,Flat centrifuges, stacked screw dehydrators, centrifugal dehydrators, integrated sludge thickening and dewatering machines, complete sludge dewatering equipment, sewage treatment equipment, planetary gear differentials, and related supporting equipment for decanters (such as sludge cutting machines, shaftless screw conveyors, integrated flocculant preparation systems, etc.). With a production history of over 40 years, our products are distributed throughout the country and have gone abroad. Having the ability to design and develop centrifuge products, obtaining national patent applications, and obtaining CE and ISO9001 approvals and certifications.
