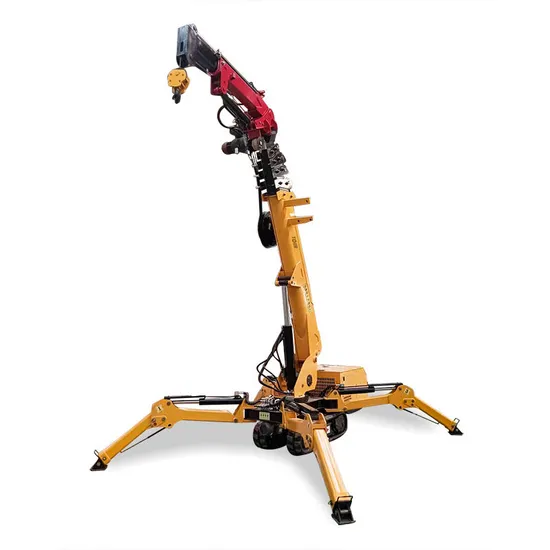

Tder Mini 3 Ton 5m 9m 14m 16m Truck Mounted Crawler Spider Crane for Construction Use

Product Description

Tder Mini 3 Ton 5m 9m 14m 16m Truck Mounted Crawler Spider Crane for Construction Use with fly jib Product Paramenters

Specifications		3t
Maximum Operating Radius		10.5m
Maximum Ground Lift		10.8m
Winch Device	Hook lifting speed	0-8m/min(4 ropes)
	Specification of steel wire rope	Φ8mm×45m
Telescopic Device	Boom form	2.4m×6-section lifting arm(Support customization)
	Boom length/time	3.1m-9.2m/20sec (Support customization)
Luffing device	Boom angle/time	0-78°/13sec
Gyroscope	Rotation angle/speed	0-360°(Continuous)/60sec
Outrigger	Outrigger movement form	Manual screw out+oil pressure automatic support (two legs)
	Maximum extension amplitude (mm)	4300 (length) X3700 (rear) X4300 (front)
Running Gear	Walking mode	Hydraulic motor drive
	Walking speed	0-2.5km/h
	Gradeability	25°(36%)
Electrical Machinery	Voltage	AC380V
Engine	Manufacturer	Changchai(Support customization)
	Type/displacement	EV80/F195
	Start mode	Electric start
	Start performance	-5°C~40°C
	Fuel/Volume	Diesel oil/8L
	Battery capacity	12v 45AH
	Fuel consumption rate	274g/kW-h
	Noise level	Rated speed ≤ 81.5dBA (1m)

*Please contact us if you need more detailed parameters. Product Description
FEATURE OF SPIDER CRANE 1. The width of the car after contraction is only 600-1500mm, and it can enter the room through the standard single door.
2. Standard equipped with Chinese famous brand engine. Euro 5 or EPA engines are optional. Supports customization for full electric motor.
3. Engineering chassis, stable driving, optional rubber or steel tracks.
4. Hydraulic outriggers, flexible contraction. Increase the lifting stability when expanding, improve the machine's passability when contracting, and facilitate access to small areas.
5. Manganese steel telescopic boom, strong load-bearing force, stable lifting, adjustable high and low speed.
6.The operation table is designed and arranged by human nature, easy to understand.
7. Optional remote control with display for safer remote control operation.
8. Hydraulic fly jib can be added to the tip of the telescopic arm to increase the arm length and further penetrate into the narrow working space.
Crawler spider crane relative to other large cranes, its shape structure is very small. Equipped with hydraulic heat dissipation system, can fully reduce the working temperature of hydraulic oil, improve work efficiency. Good stability, high quality steel, large load capacity, good anti-slip performance, wide application range, can walk freely on muddy roads and mountains; The new spider crane is a new era mechanical product, avoiding the complex transportation problems of ordinary hydraulic cranes, it can not only walk freely on the construction site, but also enter the indoor and narrow space lifting operation, so that the construction becomes more convenient.
Application Scenarios Packaging & Shipping
*The extra security packing will be carried out for the nude cargo. *Ropes and triangle blocks will be used for fixing forklifts. *We also offer wooden packing way to make the forklifts safer. *Product certificates and nameplates are provided. *A tutorial CD, tool box and extra paint are included as free gifts.
Certifications

Company Profile



Founded in 2003, TDER Group is an international large-scale machinery manufacturing company, engaged in the invention and sales of various machinery products, including forklifts, loaders, warehouse equipment and port equipment. The TDER Group has established 3 factories. All 25 categories of products have passed the SGC, TUV, BV, INTERTEK and other authoritative international institutions certification. Today, our products have been exported to Brazil, Russia, Australia, Canada, Turkey and other 158 countries and regions, with 56 agents.


Customer Feedback


Our Advantages




TDER offers customized services. You can freely change the color, engine, LOGO and more. "TDER makes every mechanical gear customizable." FAQ
1. What Certificate do you have? TDER workshop meet with the ISO9001:2008 Quality System.
All of our products with CE certificate. Some of our products meets the EPA requirements.
TDER never recruit Underage labor.
2. Can you customize and design as the clients' requirement?
TDER will try its best to meet all kinds of clients' special requirements.
However, All the customizing and refit should be implemented safely and scientifically.
The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the TDER
warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What payment terms do you accept?
Normally 30% T/T in advance as deposit, balance paid before shipment.
100% L/C at sight issued by world famous bank with good faith is also available.
6. Delivery time:
Standard configuration products are always in stock.
The production period of Customizing products is 30 days.

---
