Product Details
Product Description
Product Description

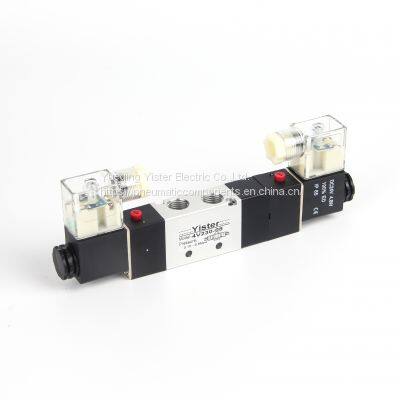

1/4 inch 3 way 220V normally closed direct acting pneumatic solenoid valve
Order code
Symbol for 4V230 08 low cost solenoid valve
Technical parameter
Model
| 4V210-M5
| 4V220-M5
| 4V230C-M5
| 4V230E-M5
| 4V230P-M5
| 4V210-06
| 4V220-06
| 4V230C-06
| 4V230E-06
| 4V230P-06
|
Fluid
| Air
|
Acting
| Internal pilot
|
Valve type
| 5/2 way
| 5/3 way
| 5/2 way
| 5/3 way
|
Orifice size
| 5.5mm2
| 5mm2
| 12mm2
| 9mm2
|
Lubrication
| No required
|
Port size
| In=out=M5
| In=out=G1/8''
|
Protective class
| IP65
|
Pressure range
| 0.15-0.8MPa(21~1145Psi)
|
Proof pressure
| 1.2MPa(170psi)
|
Material of body
| Aluminum Alloy
|
Temperature
| -5℃~60℃
|
Response speed
| <0.05s
|
Dimension for 4V220-08 5/2 way Aluminum alloy Solenoid valve
Feature
* Airtac Type Air-operated Solenoid valve 4V230-06/08
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively
>>
