PE Series Jaw Stone Crushing Machine

Product Description

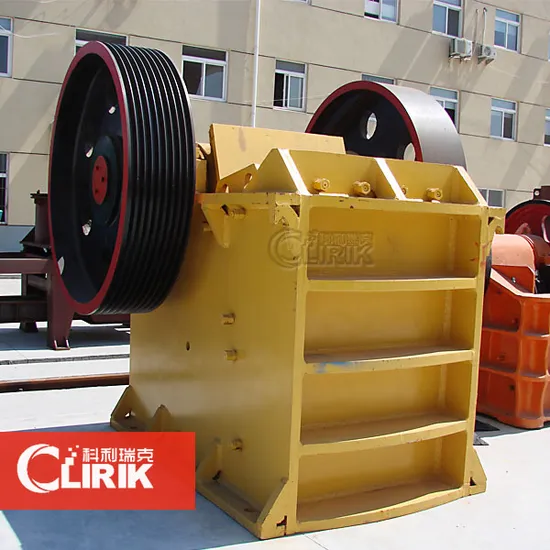

Jaw crusher
1. The best crusher for breaking stone. 2. CE, ISO9001
3. Stone Crusher Form 5-100t/h. 4. Stable performance, long lifecycle of spare parts5. Testing jaw crusher before delivery is available
Parameter for Jaw crusher

Type	PC4008-75	PC4012-90	PC4015-132
Rotor Diameter /mm	750	900	1150
Rotor Width / mm	800	1200	1500
Rotor Speed / r/min	800-1000	800-1000	550-800
Max Feeding Size /mm	<50<>	<60<>	<80<>
Finished particle size /mm	0-3	0-3	0-8
Capacity / t/h	10-30	30-60	50-100
Power /kw	55-75	75-90	45
Hammer Number /pieces	18	32	32
Dimension L*W*H/mm	2310*1665*1610	2840*2100*2020	3720*2650*2540

<50<><60<><80<>Application of jaw crusher
Jaw Crusher small is mainly used to crush kinds of mining stones primarily and the largest compression resistance of the material to be crushed is 320Mpa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway and chemical industry. This machine can break materials into medium size and fine size.
Working principle of jaw crusher
Small jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw. When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.
Advantages of jaw crusher
1. Widely used in metallurgy,mining, chemistry, cement, construction, refractory materials and ceramics. 2. CE, ISO9001
3. high capacity, 5-100t/h. 4. Uniform particle size
5. High crushing ratio
6. long lifecyle of spare parts 7. Testing jaw crusher before delivery is available
Other Product Offered
Company Brief Introduction SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, all kinds of crushers from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.
Our Services
Services For You:
1.one year guarantee for whole machine except for wear parts.
2.24 hours technical support by email.
3.calling service.
4.user manual available.
5.reminding for the service life of the wearing parts.
6.installation guide for clients from both China and abroad.
7.maintance and replacement service.
8.whole process trainling and guidance from our technicians.
High quality of after-sales service symbolizes our brand and ability. We pursue not only good quality products, but also best after sales service. Your satisfaction is our final purpose.
Our Certificate
Our Workshop
Our Exhibition
Inquiry Service of jaw crusherPlease fill in your need products and your message and please do not forget mail and/or phone if you like to be contacted. We are the professional machine manufacturer in China with 30 years experience. Pls kindly check the following, in order to select a suitable machine, send you specific techinical data, quotation and the solution drawing for you. 1. What is the raw material do you want to process? 2. What is the capacity per hour do you need? 3. What is the raw material input size? 4. What is the output size of your product? We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP, thanks. Your satisfaction is our greatest pursuit, we would like to sincerely for your service! We look forward to your inquiry!

---
