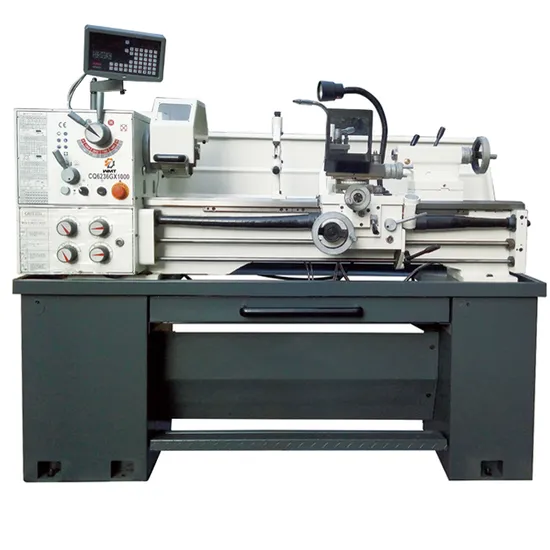

1000mm C0636B gear head metal lathe with 51mm spindle bore

Product Description

Product Description
Main Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.

Main specification:

MODEL	C0636B
Distance between centers	1000mm
Max. swing over bed	360mm
Max. swing over cross	212mm
Max. swing in gap	491mm
Width of bed	187mm
Spindle
Spindle speed range	8 steps 90-2000rpm
Spindle bore	51mm
Spindle nose	D5
Spindle taper	MT6
Center height	178mm
Thread cutting
Threads metric pitches	0.4-7mm/26kinds
Threads imperial pitches	4-56TPI/34kinds
Threads diametral	/
Threads module pitches	/
Range of feeds
Compound rest travel	90mm
Cross slide travel	170mm
Longitudinal feeds	0.052-1.392mm/rev /32kinds
Cross feeds range	0.009-0.253mm/rev (Metric lathe) 0.015-0.402mm/rev (Inch lathe)
Tailstock sleeve
External diameter	32mm
Max. travel	100mm
Taper of bore	MT3
Motor
Spindle motor power	1.5kw
Coolant pump power	40w
Others
Tool section	16*16mm
Packing dimension	1935*750*1500mm
Net/Gross weight	700kg

Company Profile
Professional Service
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes.we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
