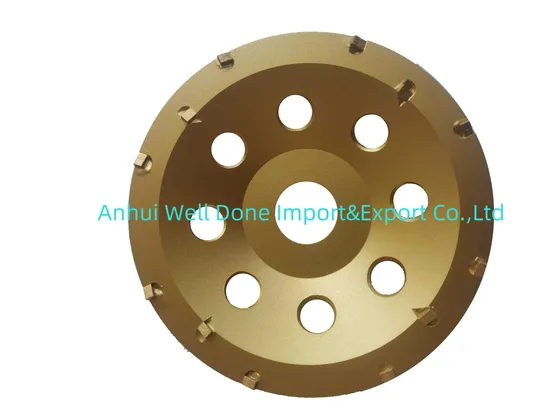

PCD Segmented Grinding Diamond Cup Wheels for Concrete Abrasive Pad

US$2.00-40.00 50 Pieces (MOQ)

Basic Info.

Model NO.

WD-1610

Bonding Agent

Metal

Arbor Size

16mm, 20mm, 22.23mm, M14

Advantage

Fast Grinding, Long Working Life

Equipment

Angle Grinders

Usage

Epoxy, Vinyls, Glue, Paint, Coating

Transport Package

Color Box, White Box, Blister Package

Specification

80-230mm

Origin

China

HS Code

8207901000

Production Capacity

10000pieces/Month

Product Description

PCD Segmented Grinding diamond Cup Wheels for Concrete Abrasive Pad Product DescriptionFeatures:Alternative PCD tips ensure the maximum wear productivity,less tiring while operating high stability and high removal rate.
Machinery:Angle grinder
Application:For removal of epoxy,vinyls and glues.
Product Parameters

Item No.	Outer Diameter		Arbor	Segment Thickness(mm)	Segment Width (mm)	No.of Segments
Item No.	mm	inch	Arbor	Segment Thickness(mm)	Segment Width (mm)	No.of Segments
WD-1601	115	4.5	16mm 20mm 22.23mm M14	2.4	3.0	6
WD-1602	125	5		2.4	3.0	6
WD-1603	180	7		2.4	3.0	9

Item No.	Outer Diameter		Arbor	Segment Thickness(mm)	Segment Width(mm)	No.of Segments
Item No.	mm	inch	Arbor	Segment Thickness(mm)	Segment Width(mm)	No.of Segments
WD-1604	125	5	16mm 20mm 22.23mm M14	2.4	3.0	6
WD-1605	180	7		2.4	3.0	9/12
WD-1606	230	9		2.4	3.0	12/15

Item No.	Outer Diameter		Arbor	Segment Thickness (mm)	Segment Width (mm)	No.of Segments
Item No.	mm	inch	Arbor	Segment Thickness (mm)	Segment Width (mm)	No.of Segments
WD-1607	125	5	16mm, 20mm 22.23mm M14	2.4	3.0	4/6
WD-1608	180	7		2.4	3.0	9/12
WD-1609	230	9		2.4	3.0	12/15

Item No.	Outer Diameter		Arbor	Segment Thickness (mm)	Segment Width (mm)	No.of Segments
Item No.	mm	inch	Arbor	Segment Thickness (mm)	Segment Width (mm)	No.of Segments
WD-1610	125	5	16mm, 20mm 22.23mm, M14	2.4	3.0	12
WD-1611	180	7		2.4	3.0	15
WD-1612	230	9		2.4	3.0	18

Packaging & ShippingShip by UPS,DHL,FedEx,Aramex,or by air / sea/ land as your request.
