Basic Info.
Automatic Grade
Automatic
Type
General Rubber Machinery
Type of General Rubber Machinery
Rubber Refiner
Type of Tire Machinery
Tire Building Machine
Using Life
More Than 15 Years
Transport Package
Packed in Wooden Case
Specification
CE, ISO9001
Production Capacity
200set/Year
Product Description
•Qingdao HUICAI Cooperate Sincerely With You •
MACHINE APPLICATION:
It is used for rubber mixing, warming, sheeting and plastic mixing, etc.

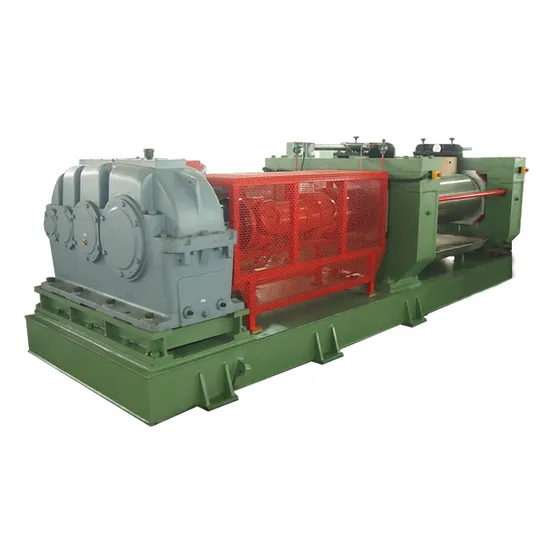

MACHINE SHOW:
[ XK-160 ]
[ XK-250 ]
[ XK-300 ]
[ XK-360 ]
[ XK-400 ]
[ XK-450 ]
[ XK-550 ]
[ XK-560 ]
[ XK-610 ]
We have two type rubber mixing mill:
One is nylon bush with soft gear reducer, the advantage: Low cost.
Another is cooper bush with hardened gear reducer, the advantage: has lower noisy and long use life.
STOCK BLENDER PICTURE:
(1)Stock blender is optional.
(2) Stock blender is usually installed on the top of bigger mixing mill.
(3) Stock blender not only can improve the working efficiency, but also can mix the materials more fully.
(1)one year guarantee for whole machine
(2)24 hours technical support by email or calling or door-to-door service
TECHNICAL PARAMETERS:
Model
| XK-160
| XK-250
| XK-300
| XK-360
| XK-400
| XK-450
| XK-560
|
Roll diameter(mm)
| φ160
| φ250
| φ300
| φ360
| φ400
| φ450
| φ560
|
Working length of roll(mm)
| 320
| 620
| 750
| 900
| 1000
| 1200
| 1530
|
Linear speed of front roll(m/min)
| 11.24
| 14.4
| 15.1
| 16.25
| 18.65
| 24.5
| 29.09
|
Speed ratio of front & back roll
| 1:1.35
| 1:1.17
| 1:1.27
| 1:1.25
| 1:1.27
| 1:1.27
| 1:1.2
|
Max. roll distance(mm)
| 4.5
| 8
| 8
| 10
| 10
| 15
| 20
|
Feeding capacity per time(kg)
| 1-2
| 10-15
| 15-20
| 20-25
| 18-35
| 25-50
| 50-65
|
Driving motor power(kw)
| 7.5
| 18.5
| 22
| 30
| 37
| 55
| 75
|
Outside dimension(mm)
| Length
| 1080
| 3400
| 3580
| 3780
| 4250
| 5200
| 6120
|
Width
| 796
| 1500
| 1550
| 1850
| 1850
| 2380
| 2282
|
Height
| 1415
| 1500
| 1695
| 1740
| 1870
| 1770
| 2000
|
(1) Founded in 1996;
(2) 100% of the factory, to meet all your requirements;
(3) CE, ISO9001 certification;
(4) A one-year warranty and long-term technical support;
(5) Supply of all kinds of rubber machinery: vulcanizing machine, rubber mixer, rubber refiner, rubber kneader, rubber injection molding machine, vacuum hot press molding machine, jaw vulcanizing machine, precuring equipment, hydraulic tire curing machine, automatic tube curing machine, foam machine; conveyor belt production line,etc.
(6) We have import and export rights, the products are exported to many countries, more than 40.
(7) 2012 was awarded the "AAA grade credit enterprise" and "integrity enterprises in Qingdao City," the title.
♥ If you are interested in our products, please contact me ♥
>>
