Hg-C25t Hydraulic Traveling Head Cutting Machine for Fabric, Leather, Foam

Product Description

HG-C25T Hydraulic Traveling Head Cutting Machine for fabric,leather,foam

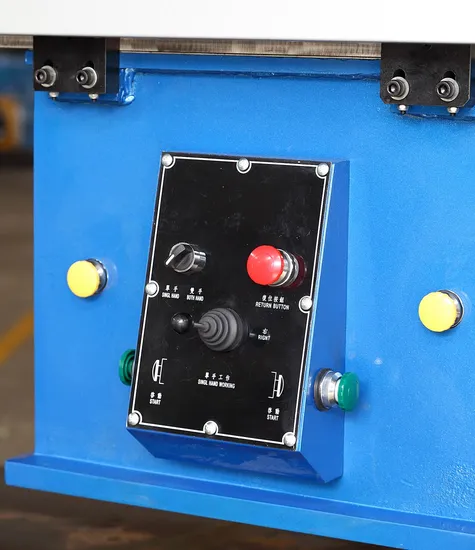

Used for cutting shoe uppers,insoles,bags,purse,soft toys,abrasive etc. 1.Features and Advantages 1.Movable trolley with powerful dynamic braking assuring a very quick stop,without wear of the translation gear motor. 2.Pushbutton controls (time interlock synchronization during cutting phase) to ensure positive safety for the operator. 3.Really exceptional trolley displacement speed. 4.High power continuity. 5.Low energy consumptions. 6.High reliability,no primary maintenance required. 7.multi-layer fabric, reach 50mm thickness; and easy operation moving head, available for small or big factories. 3.Product Specification

Model	Cutting Force	Dimension/(mm)	Cutting Area	Moter	Stroke	Net Weight
HG-C25T	25 Tons	2330*900*1900	500*1600mm	2.2kw	40-160mm	1900kg
HG-C30T	30 Tons	2330*900*1900	610*1600mm	4kw	40-160mm	2300kg
HG-C40T	40 Tons	2330*900*1900	610*1600mm	4kw	40-160mm	2800kg
HG-C50T	50 Tons	2330*900*1900	610*1600mm	5.5kw	40-160mm	3500kg

4. Application Materials: The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
5. FQA: 1)What's warranty of travelling head cutting machine?
12 months Warranty Life-long maintenance service for machine
2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.

3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.

4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.

5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.

6)Are you a factory or trading company?
We are a factory and manufacturer

Don't know how many ton you need?
Please contact us!
If you are not sure if your material can be cut by this cutting machine,we want to know the product information:

Material:
Max. material width:
Max. material thickness:
Max.cutting length:

Send your Inquiry Details in the Below,Click "Send"!
we will reply within 24h!

---
