Welcome to visit

Automatic Financial Book Paper Binding Machine

US$1,899.00
5-19 Pieces
US$1,519.00
20+ Pieces

Basic Info.

Model NO.
TR-AF50
Classification of Financial Binding Machine
Automatic
Classification of Wire Binding Machine
One Hole at a Time
Thickness
0-50mm
Binding Thickness
400 Pages Paper
Power Source
110V-220V,50-60Hz
Drill Bit Diameter
7*50mm Hollow Straight Drill
Nylon Tube Diameter
5.2*50mm
Power Consumption
350W
Binding Firmness
320n
Noise
50dB
Ambient Temperature
0-40 Degree Celsius
Ambient Humidity
60-90%H
Punching Speed
9s
Punching+Binding Speed
28s
Pre-Heat Time
3min
Table Size
440mm(Length)*200mm(Width)
Machine Size
400*575*820mm
N.W/G.W
38kg/40kg
Transport Package
Color Box with Polyfoam
Specification
50mm thickness binding
Trademark
Zeneffic
Origin
China
HS Code
84729090
Production Capacity
50000/Year

Product Description

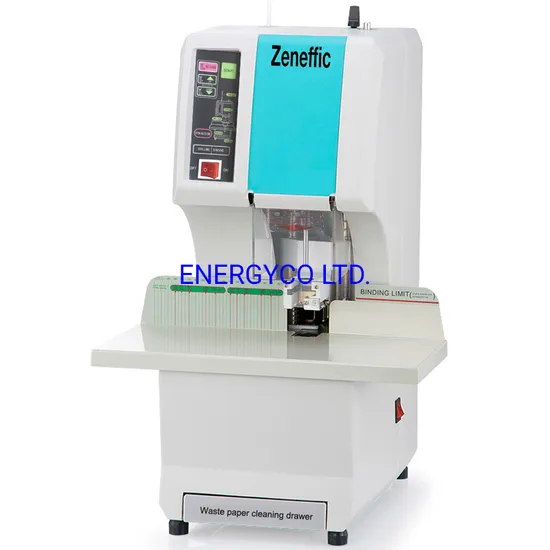

TR-AF50 Fully Automatic Binding Machine
Specification
Model No. TR-AF50 Fully Automatic Binding Machine
Control panel Intelligent keystroke operation
Punching/binding thickness 1-50mm(400sheet of 70g A4)
Drill size Φ7*50mm
Rivet tube size Φ5.2*500mm
Punching hole diameter 7mm
Pre-heat time ≤3min
Punching speed ≤9s
Punching + binding speed ≤28s
Punching method Automatic
Binding method Automatic
Auto laser position Yes
Error warning Yes
Safety cover Yes
Bin full function Yes
Binding firmness ≥320N
Auto energy saving Sleep mode after adjustable 5-60min not using machine
Table size 440mm(Length)*200mm(Width)
Machine size 400*575*820mm
N.W/G.W 38kg/40kg
Minimum Order ·Small qty is accepted, even 1pc as a sample
·Prices are different according to qty
·Free customized packing requires more qty
Delivery time ·Sample orders: 5-7 days
·Bulk orders: 15-30 workdays after receiving the deposit
