Chinese container reach stacker manufacturer vs Sany 45ton container lift truck Hyster 45 ton container stacker price

Product Details

Product Description

Product Description
Chinese container reach stacker manufacturer vs Sany 45ton container lift truck Hyster 45 ton container stacker price
1. High energy-saving:
World's initiative energy reclaiming system, comprehensively save energy up to 25%.
2. High efficiency:
Adopt multi-motion linkage design,spreader motion ratio control technology and micro-move control technology; the equipment can be easily controlled.
3. High security:
Dynamic anti-rollover protection system,automatic fire extinguishing system, solid tyre and hydro-pneumatic suspension system, patent technology of mobile counterweight, all meeting European safety standards
4. High reliability:
Water identification technology of the connections, CAN bus communication technology, digital platform design technology;German design, precise and reliable
5. Highly comfortable:
Concentrated joystick,360 degree view, full-range headlamp, steering dynamic response, new-style pedal design, all providing a comfortable experience.
6. H-type Spreader:
Single main beam patented technology; selfweight of spreader is less than 7t; the components passed through millions of times equivalent fatigue test; performance steady and reliable
7. High maintainability:
Spacious maintenance room, preventative maintainance system, over 200 malfunction diagnosis programs.
8. High return:
Saving energy by 25%, saving $12,888 per year if 90,000 containers are stacked per year.

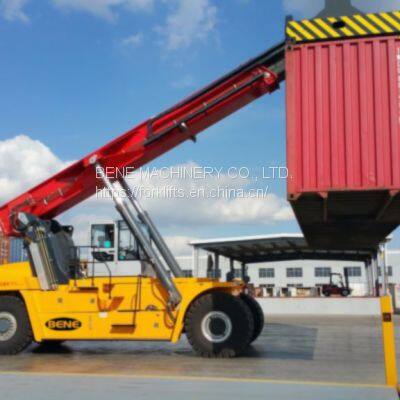

45 Ton Reach stacker
Model						RS450
Lifting	1	Stacked Levels	Row 1-2-3	Type of Container	Unit	Lifting Capacity
	2	4x	First row	9'6"	ton-m	45-2.0
	3	5x			ton-m	43-2.0
	4	6x		8'6"	ton-m	-
	5	3x	Second row	9'6"	ton-m	32-3.85
	6	4x			ton-m	32-3.85
	7	2x	Third row	9'6"	ton-m	15-6.35
	8	3x			ton-m	15-6.35
	9	Max. Lifting Height			m	15.2
performance	10	Speed	Lifting Speed(Unladen/Laden)		mm/sec	420/250
	11		Lowering Speed(Unladen/Laden)		mm/sec	360/360
	12		Forward travel speed(Unladen/Laden)		km/h	25/21
	13		Backward travel speed(Unladen/Laden)		km/h	25/21
	14	Traction(Laden)			kN	300-2km/h
	15	Outside turning radius			mm	8000
Weight	16	Self weight(Unladen)			kg	72
	17	Weight Distribution	Laden	Front axle	kg	103
	18			Rear axle	kg	14
	19		Unladen	Front axle	kg	37
	20			Rear axle	kg	35
Stability,Power&Transmission	21	Front stability		Forward stability. 40T	First row	1.875
	22			Forward stability. 25T	Second row	1.806
	23	Engine		Brand		COMMINS
	24			Model		QSM11-335
	25			Emission standard		Euro III
	26			Engine control system		Electronic control system
	27			Engine speed/Control handle		Electronic control system
	28			Engine cooling system		Independent cooling system
	29			Engine power	HP/rpm	345/2100
	30			Torque	Nm/rpm	1708/1400
	31			Volume/No. of cylinder	L/No.	10.7/6-inline
	32			Fuel consumption rate	g/kw-h	210
	33			Maintenance period	hour	500
	34	Transmission		Brand		DANA
	35			Model		HR36000
	36			Control type		Electronic control
	37			Forward & reverse gear		4/4
	38			Transmission type		Automatic
	39			Type of gear shift		Soft gear shift
Main Features	40	Drive axle		Brand		Kessler/Axlet
	41			Model		D102/PRC7534
	42	Brake	Braking system	Type		Wet disc brakes
	43			Cooling/filter system		With/With
	44		Parking brake	Type		Big dry disc
	45	Tyre		Front wheel	in	18.00x25/PR40
	46			Rear wheel	in	18.00x25/PR40
	47			Wheelbase	mm	6000
	48			Length	mm	11250
	49			Front wheel track	mm	3030
	50			Rear wheel track	mm	2760
	51	Hydraulic system		Load sense system		New second generation system
	52			Variable displacement piston pump (new)		New second generation system
	53			Cooling/filter system		With/with
	54			High flow main valve (new)		M402
	55	Cylinder volume		Hydraulic oil	L	700
	56			Diesel	L	600
	57	Electric system		Type/voltage	V	CanBus/24V
	58			Overload system	stand	Electronic control
	59			Color/graphics display		6.5" color display
	60			Electronic/ proportion(tonnage/percentage)		With/with
	61			System integrity		comprehensive
	62	Cab		Type (new)		Best in China
	63			Cooling/heating (new)		Electronic control
	64			Size		big
	65			Step/handrail		With/two sides
	66			Front step/handrail		With/fender
	67			Cab forward shift		Yes
	68			Travel with door open		Yes
	69	Boom angle		Min./Max.	deg	0/60
	70			Basic design		4 sides box type
	71	Chassis		Basic design		4 sides box type
	72	Spreader		Brand		ELME
	73			Model		817 Toplift
	74			Weight	kg	8800
	75			Rotation angle ±		105/195
	76			Sidesway ±		800
	77			Tilt angle ±	deg	2 (gravity)
	78			Suitable container	20-40ft	Yes, ISO
	79	View		Front,Top,Side,Back		Good
	80	Noise level		Cab interior (Leq)	dBA	70

---
