Portable Digital Durometer Testing Equipment Shore a Hardness Tester for Plastic/Rubber

Product Description

Guangzhou Amittari instruments Co., LTD. specialize in manufacturing coating thickness gauge, ultrasonic thickness gauge, hardness tester, surface roughness tester, vibration meter, gloss meter, whiteness meter, reflectance meter, tint meter, lux meter, stroboscope, tachometer moisture meter, tension meter, sound level meter, anemometer, force gauge etc.. Detailed Photos

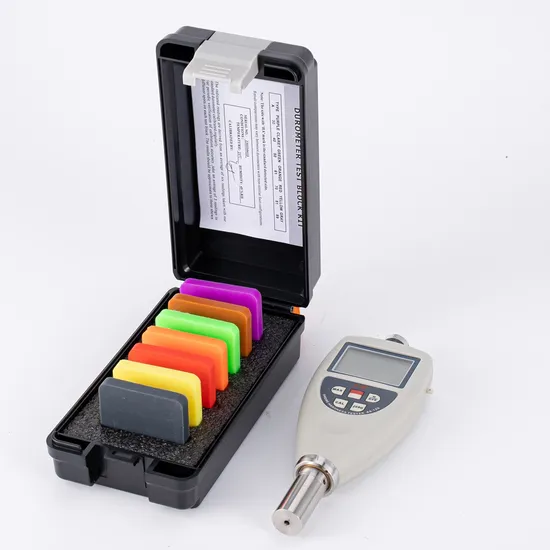

Portable Digital durometer testing equipment Shore A Hardness Tester for plastic/rubber AS-120A
Product Description
Product Description
The Shore Hardness Tester AS-120 Series including type(A, B, C, D, E, O, DO, OO), Model complete, with different probe size, Use for different measured objects and Hardness value, to meet different request for kinds of material hardness measure.

Product Feature
* Integrated design, small volume, light weight, simple structure, easy to use, Intuitive readings and automatic shutdown function.
* With low battery alarm indicator & average value calculation function.
* Auto switch off and manual shutdown.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.

Product Model Information

Model	Indenter	Typical Examples Of Materials Tested	Hardness Values
A	0.79 Truncated (frustum) cone	Soft vulcanized rubber, natural rubber, nitriles, thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt, and leathers	20~90A
B	R0.1Cone	Moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials.	Above 90 A Below 20 D
C	0.79 Truncated (frustum) cone	Medium-hard rubber, thermoplastic elastomers, medium-hard plastics and thermoplastics.	Above 90 B Below 20 D
D	R0.1Cone	Hard Rubber, thermoplastic elastomers, harder plastics, and rigid thermoplastics.	Above 90 A
DO	R1.2 Spherical radius	Moderately hard rubber, thermoplastic elastomers, and very dense textile windings.	Above 90 C Below 20 D
E	R2.5 Spherical radius	Hard sponge, EVA	Above 90 DO Below 20 A
O	R1.2 Spherical radius	Soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings.	Below 20 DO
OO	R1.2 Spherical radius	Extremely soft rubber, thermoplastic elastomers, sponge, extremely soft plastics and thermoplastics, foams, low-density textile windings.	Below 20 O

Product Parameters
Product Parameters

Accuracy	≤±1H
Resolution	0.1H
Display Range	0~100H
Measurement Range	10~90H
Case	High impact ABS
Operating temperature	0~40°C
Size	170x63x24 mm
Power Supply	2x1.5vAAA Um-4 Battery
Weight	310 g (Not including batteries)

Product Accessories

Standard Accessories	Main Unit
	Test block
	Carrying Case
	Operation Manual
Optional Accessories	USB data output
	Bluetooth™ data output

Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output

Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth data output function ( except few instruments ) . As Bluetooth data output is included in optional accessories, not standard delivery,it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth data output.
Packaging & Shipping
Package

After Sales Service

---
