and Washer Occ Disc Waste Paper Processing Thickner Pulp Thickener

Product Description

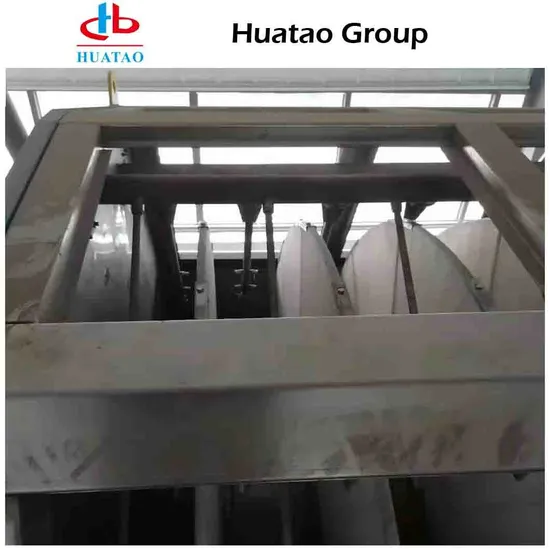

Multi-Disc Thickener in Pulper Production Process for Paper Mill
Product Description
The Multi-Disc Thickener/disc filter is used for washing and thickening the low consistent pulp. It can also be used for recovering the fiber from the white water.
Disc Thickener Features:
As compared with traditional gravity dewatering equipment, this equipment has such merits as greater filtering area, taking up smaller floor and larger capacity. Being fitted with stainless steel sector disc and trough body can make pulp cleanliness higher.
Multi-Disc Thickener Advantage:
1. Used to wash and thicken low-consistency slurry.
2. Combined disc-type filter drum increases the filter area greatly.
3. Less space requirement, but large production capacity.
4. Adopt stainless steel filter screen, long service life.
Product Parameters

Type	MPL25
Used for recovery of white water
Filter Plate Diameter(mm)	2500
Filter Plate quantity (pc)	4-12
Filter Area of each plate (m2)	7.5
Main Rotor(KW)	5.5-11
Inflow White Water Consistency (%)	0.35-0.45
Outflow consistency(%)	3-5
Wgite Water Flow(m3/m2h)	1.6-4.0
Used for pulp thickening
Filter Plate Diameter(mm)	2500
Filter Plate quantity (pc)	4-12
Filter Area each plate(m2)	7.5
Main Motor(KW)	5.5-11
Pulp	OCC,Wood Pulp,Pulp Deinking,Straw Pulp
Inflow Consistency(%)	0.5-1.2
Outflow Consistency(%)	8-12
Productivity(t/m2.d)	0.7-1.2
