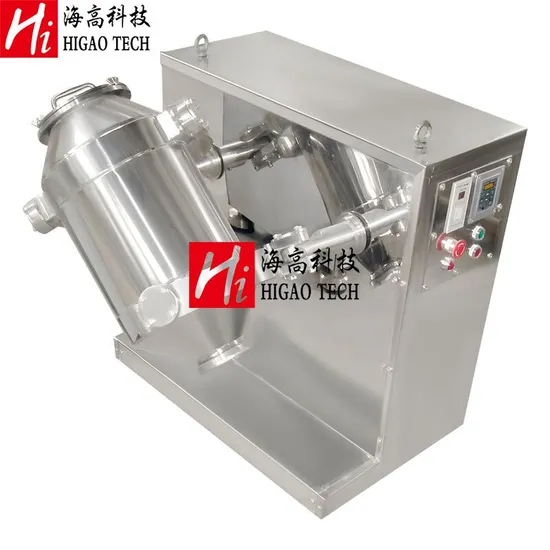

Powder Mixing and Filling Machine Rotator Mixer 3D Movement Drum Powder Mixer

Product Description

Product Description 1. Main Application:
3D mixer is used to mix powder, granule, and particle in pharmaceutical, foodstuff, chemical, light industry, electronic, mining and metallurgy, national defense industry and scientific research institutes.
2. Working Principle:
3D mixer is composed of base, rotary arms, and a barrel. Fed to the barrel, the material is driven by the rotary arms to do 3 dimensional movements. 3 dimensional movements can make a better mixing effect. The mixing barrel is fully closed, which can keep out germ and dust.

3. Surface treatment and steel grade:
The mixing barrel of Three Dimensional Mixer is fully closed and polished brightly, which can keep out germ and dust to meet sanitary standard.
Stainless steel 304 or SS 316L is very popular by Pharmaceutical enterprises and food factories.

(3D Series) Three Dimensional Mixer (3D Mixer) of HIGAO TECH
Model	Total volume	Loading volume	Motor/speed	Dimension(L×W×H)	Weight
3D-50	50L	35L	0.75kw/0-15rpm	970×950×1200mm	300kg
3D-100	100L	70L	1.5kw/0-15rpm	1200×1600×1500mm	500kg
3D-200	200L	140L	4kw/0-15rpm	1400×1800×1600mm	700kg
3D-300	300L	210L	4kw/0-15rpm	1600×1950×1700mm	1000kg
3D-400	400L	280L	4kw/0-12rpm	1700×2100×1850mm	1200kg
3D-500	500L	350L	5.5kw/0-12rpm	1900×2200×2150mm	1500kg
3D-600	600L	420L	5.5kw/0-11rpm	2100×2400×2250mm	1800kg
3D-800	800L	560L	7.5kw/0-10rpm	2200×2500×2300mm	2000kg
3D-1000	1000L	700L	7.5kw/0-10rpm	2280×2600×2500mm	2500kg
3D-1500	1500L	1200L	15kw/0-10rpm	2500×3100×2600mm	3000kg
3D-2000	2000L	1500L	18.5kw/0-9rpm	2750×3600×3150mm	3700kg

Related Products Click on this link to view more products.
Application
Company Profile What we provide:
Higao Tech Provide professional grinding pulverizer machines, powder mixing machines, vibrating screening machines, granulating machines, drying equipment, conveying equipment, puffed snack food production line, food snacks processing equipment, scrap rubber tire recycle equipment, waste tire recycling rubber powder production plant, rubber crumb recycling equipment, nutritional breakfast producing line, various customized turnkey systems, powder engineering turnkey system projects used in food, pharmaceutical, chemical, tire recycle, plastic, mineral, ceramic industries, etc.
Packaging & Shipping
FAQ 1. How can I know your quality?
Our company is famuous in our industry. We have more than 20 years history. The best way to know the quality is comparison. You can come to our factory for on-the-spot investigation. You are welcome.
2. Can you supply sample test?
Of course our company can supply sample test before buying. And record the testing result and send to you by pictures or video.
3. What is your delivery time if I place order?
Usually 30~60 days. It depends on the machine itself, our actual order status.
4. Can you supply installation and commissioning service abroad when we received our equipment?
Yes, our company can send our engineers to your local workshop to guide installation and commissioning and training your operators.
5. How to operate and maintain the machine?
We will give you operation manual, drawing, circuit diagram spare parts list, etc after shipping.
6. What should I do if we can not solve the problems some times?
You just need to send email or make a call to us. We will reply within 12 hours and analyse the problems with you. Find the reason and find the way.
If we can not solve by communication after trying several ways, we can send our engineer to your place if you need.
7. What is your warranty period?
We supply one year warranty and life time after sales service for our euqipment.
