Heavy Duty Universal Turning Machine Ca6180 Low Cost Manual Metal Lathe Machine

Product Description

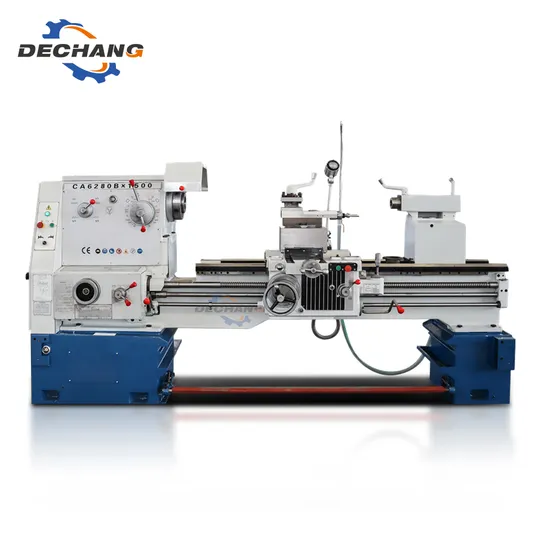

Heavy Duty Universal Turning Machine CA6180 Low Cost Manual Metal Lathe Machine

Product Description
The main performance characteristics:
1 Machine tool bed box, headstock and tailstock, pallet etc. the binding surface between the manual scraping machine, after rigorous testing, the precision and stability of the effective guarantee machine.
2 The machine adopts high strength cast iron, copper and chromium added special materials, bed width 400mm, bed rail quenching depth 4mm, effectively improve the wear resistance and stability of machine tool.
3 Machine tool bed box lubricated system by the use of the lubrication of the pump for lubrication, for the hot weather, to ensure the cleanliness of the bed box and heat dissipation characteristics, effectively extend the bearing and gear life.
4 Machine tool spindle using Wafangdian bearing, spindle hole diameter 52mm, the precision grinding machine tool gear, effectively improve the hardness, reduce machine noise.
5 Machine tool uses the domestic brand screw, wire mother uses the high quality bronze alloy to guarantee the wear resistance and the accuracy retention.
6 Machine tool with four position high strength tool, shank size: 25x25mm.
Application:
1 CA series of ordinary horizontal lathe is suitable for turning inside and outside cylindrical surface, conical surface and other rotating surface, turning various metric and inch, modulus and pitch thread, and can carry out the work of drilling and pulling oil groove, is a very versatile horizontal lathe, widely used in all kinds of shaft and disc parts of the batch processing.
2 This series of lathe bed width in general lathe, rail width 400mm has a high stiffness; guide rail surface is quenched by medium frequency, and is durable.
3 The machine operation is flexible and concentrated, the apron with fast moving mechanism. Using single handle vivid of the operation, pleasant and good..
4 Machine tool structure rigidity and transmission rigidity are higher than the general lathe, the power utilization ratio is high, is suitable for the strong cutting.
5 Machine tool factory in strict accordance with the test procedures for testing, and make a strong cutting test, to ensure that the machine has a good accuracy and reliability.
Product main technical specifications:

Specifications		CA6180 CA6180B CA6180C	CA6280 CA6280B CA6280C
Max. Swing over bed		800mm
Max. Swing over carriage		540mm
Max. swing in gap		--	1020mm
Effective gap length		--	210mm
Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
Width of bed		400mm
Section of turning tool		25x25mm
Spindle	Spindle speeds	10-1400rpm/16-1400rpm (24steps)
	Hole through spindle	52mm. (80mm). [105mm]
	Spindle taper	NO.6(MT6)(Φ90 1:20)[Φ113 1:20]
Feed	Number of feeds	64 kinds(for each)
	Range of metric threads(kinds)	(1-192mm)44kinds
	Range of inch threads(kinds)	(2-24tpi)21kinds
	Range of module threads(kinds)	(0.25-48)Moduie39kinds
	Range of pitch threads(kinds)	1-96DP(37kinds)
Tailstock	Max. tail stock spindle travel	150mm
	Tail stock spindle diameter	75mm
	Taper of tail stock spindle center hole	NO.5(MT5)
Main motor		7.5KW(10HP)
Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750
	Overall dimensions for1000mm	2700x1140x1750
	Overall dimensions for1500mm	3200x1140x1750
	Overall dimensions for2000mm	3700x1140x1750
	Overall dimensions for2200mm	4030x1140x1750
	Overall dimensions for3000mm	4850x1140x1750
	Overall dimensions for4000mm	5800x1140x1750
Weight (kg)	Length	G.W N.W.
	Weight for 750mm	2520 2400
	Weight for 1000mm	2720 2560
	Weight for 1500mm	2980 2800
	Weight for 2000mm	3260 3087
	Weight for 2200mm	3490 3287
	Weight for 3000mm	4200 3887
	Weight for 4000mm	4850 4500

Detailed Photos

Company Profile
What We Do?
Our main products are :
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.

WHY CHOOSE US?
QUALITY COMMITMENT
Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response

Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support

On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost

FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
